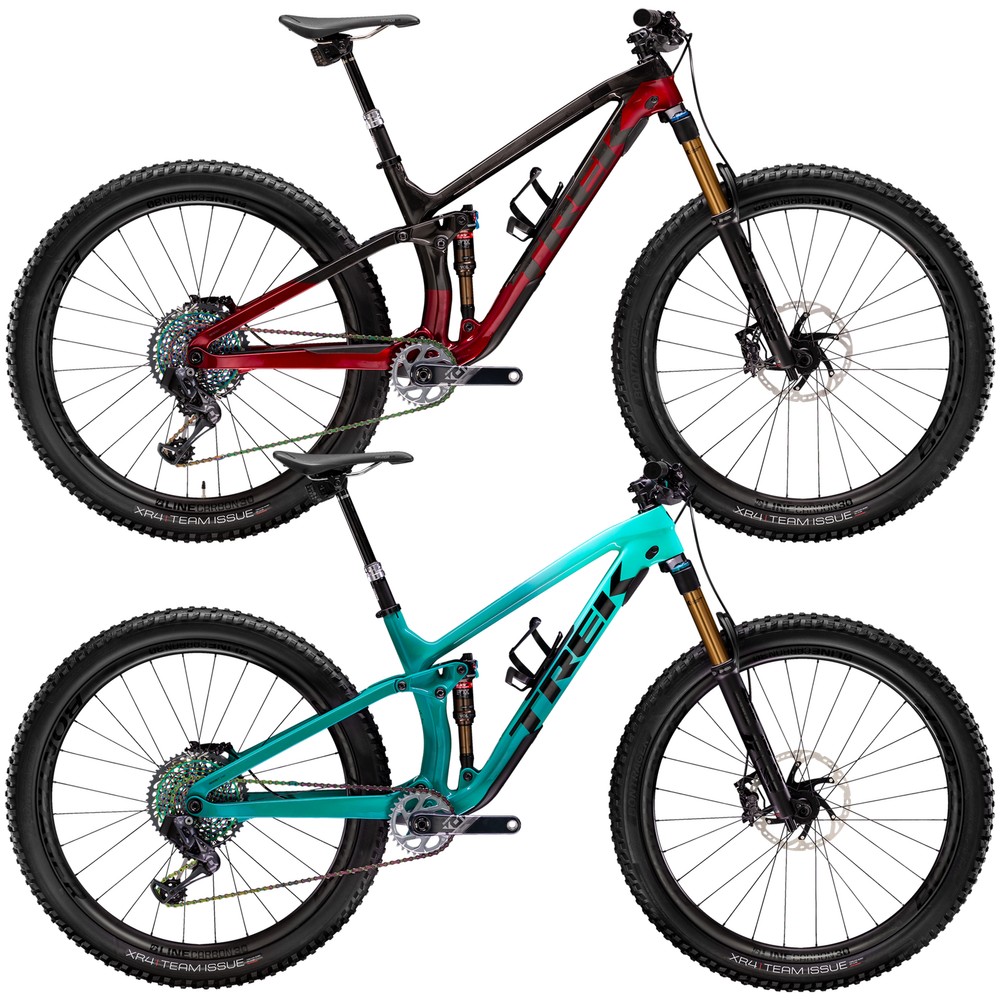

TrekFuel EX 9.9 X01 Eagle AXS 29" Mountain Bike 2020
Trek’s Fuel EX 9.9 X01 Eagle AXS 29" Mountain Bike feels equally at home climbing, descending and flicking through tight trails. The FOX Factory FLOAT EVOL rear shock and Factory 36 FLOAT EVOL air spring fork both do an excellent job of keeping traction up and absorbing both large and small bumps, aided by the Kashima Coat which increases the smoothness of the stanchion and therefore the fork’s suppleness. The carbon frame also benefits from Trek’s Mono Link design that allows the angles to be altered, Knock Block protection against the fork crown and integrated storage for tools.
SRAM’s wireless 12-speed X01 Eagle AXS drivetrain gives instant shifts at the lightest touch of a button, with no need to allow for cable stretch or mud, making every gear shift precise and crisp. The AXS system also controls the RockShox Reverb wireless dropper seatpost, doing away with yet more cables and the AXS smartphone app even allows customisation of certain drivetrain functions if so desired. Shimano XT 4-piston hydraulic brakes provide tireless stopping power whilst the Bontrager Line Carbon 30 wheels and 2.6x29” XR4 Team Issue tyres are both tubeless-ready.
Highlights
- Trek OCLV Mountain Carbon frame with internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link and Boost
- FOX Factory FLOAT EVOL rear shock with RE:aktiv with Thru Shaft 3-position damper, Kashima Coat, tuned by Trek Suspension Lab
- FOX Factory 36, FLOAT EVOL air spring fork with GRIP2 damper, tapered steerer, 44mm offset 140mm travel
- SRAM X01 Eagle AXS 12-speed groupset
- Shimano XT M8120 4-piston hydraulic disc brakes
- Bontrager Line Carbon 30, Tubeless Ready wheels
- RockShox Reverb AXS, wireless dropper seatpost
Technical Specification
| Frame | Trek OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel |
| Fork | FOX Factory 36, FLOAT EVOL air spring, GRIP2 damper, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm bolt-on axle, 140mm travel |
| Rear Suspension | FOX Factory FLOAT EVOL, RE |
| Bottom bracket | SRAM DUB, 92mm, PressFit |
| Stem | Bontrager Line Pro, 35mm, Knock Block, 0-degree |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise |
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Brakes | Shimano XT M8120 4-piston hydraulic disc |
| Brake Levers | Shimano XT M8120 |
| Rear Derailleur | SRAM X01 Eagle AXS wireless, 12-speed |
| Shift Levers | SRAM Eagle AXS wireless, 12-speed |
| Cassette | SRAM XG-1295 Eagle, 10-50t, 12-speed |
| Chain | SRAM XX1 Eagle, 12-speed |
| Crankset | SRAM X01 Eagle AXS Carbon, DUB, 32T alloy ring, Boost |
| Front Wheel | Bontrager Line Carbon 30, Tubeless Ready, 6-bolt, Boost110 |
| Rear Wheel | Bontrager Line Carbon 30, Tubeless Ready, 6-bolt, Boost148 |
| Tyres | Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 2.6x29" clincher |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seatpost | RockShox Reverb AXS, wireless, 31.6mm |
| Weight Limit | 136kg (bike, rider and cargo) |
| Manufacturer Claimed Weight | M - 12.97 kg / 28.60 lbs (with TLR sealant, no tubes) |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
