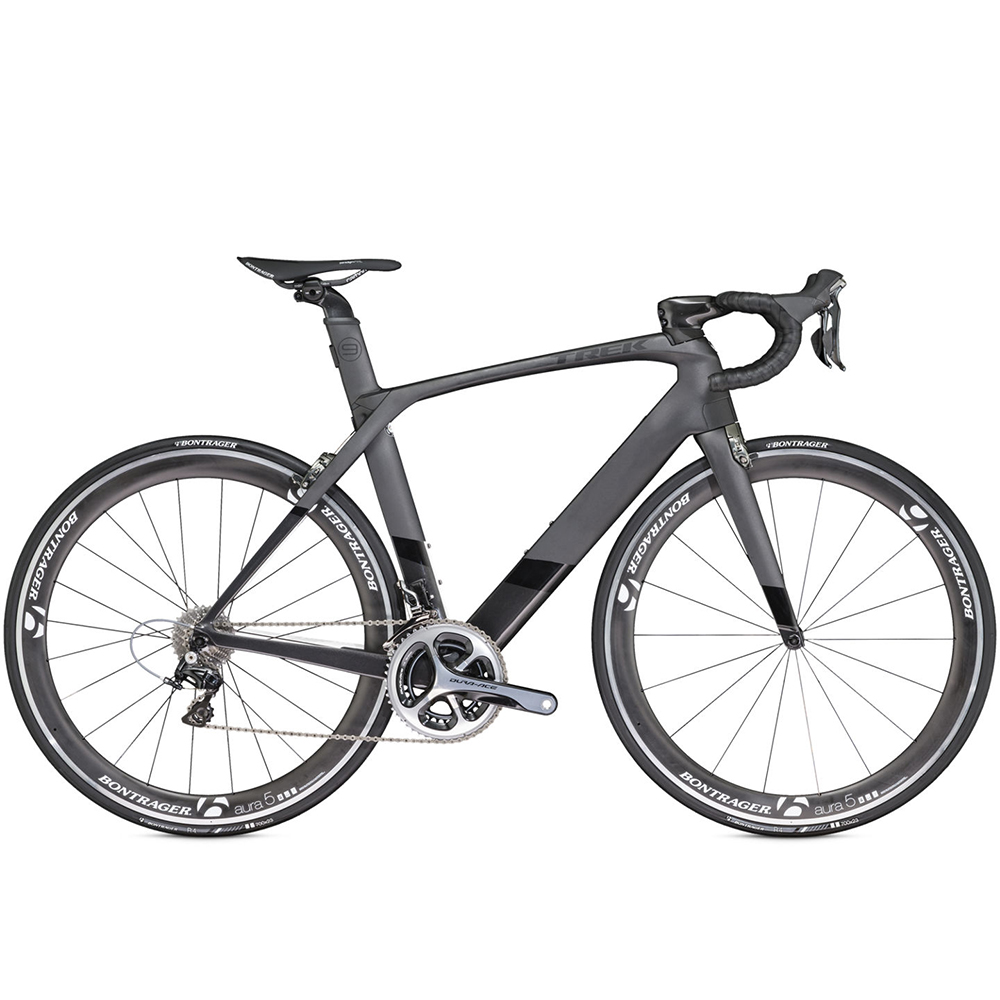

Trek Madone 9.5 C H2 Road Bike 2016

£6,000.00

Matte Dnister Black/Trek White

We're sorry, but unfortunately, we're unable to ship this item to your country

Assembled with Care: Your bike will be fully built by our trained mechanics before being carefully packaged and shipped to your door.

Ready to Ride: When you receive your bike all you'll need to do is unpack it, attach the pedals, turn the handlebars and ride.

Free Delivery: All bikes come with free delivery or you can upgrade to Premier Bike Delivery for £99 and have your bike delivered by hand.

Product ID: 16MADONE9.5CH2

Adding new meaning to the phrase super bike, the Trek Madone 9.5 C H2 Road Bike 2016 excels in aerodynamics, integration, ride quality and power to give you the ultimate riding machine.

Especially as it is kitted out in Dura-Ace and Bontrager Aura wheels.

Description

Trek Madone 9.5 C H2 Road Bike 2016

The term super bike has been thrown around a lot in recent years, but the Trek Madone 9.5 C H2 Road Bike 2016 gives a whole new meaning to this.

The bike was developed with help from the Trek Factory Race Team and by spending a lot of time in the wind tunnel. The result is a bike that does not excel in just one area, but a bike that seamlessly blends ride quality with power and aerodynamics as well as integration and ride quality to produce a rider tuned and balanced bike.

Additionally, all riders are catered for by the H2 fit which is a geometry that suits most riders. With a good balance between an all out racing position and a more relaxed one. This makes the bike ideal for racing but also more than capable of racking up long miles on.

Upgrades from the Madone 9.2:

  • Shimano Dura-Ace mechanical drivetrain
  • Bontrager Aura TLR wheelset
  • Bontrager R4 tyres w/220tpi casing
  • Bontrager Paradigm RXL saddle w/carbon rails

600 Series OCLV Carbon fibre makes up the body of the frame itself. This advanced aerospace material not only saves weight, it also elicits a ground-breaking level of balance and stiffness so you can trust the bike in every situation on the road.

Looking to fully maximise aerodynamics within the UCI's regulations, the Madone 9 Series Frameset features an unprecedented level of integration with internal cable routing and an integrated front brake. The brake in enclosed in the Vector Wing, which obfuscates the cabling for the best possible wind tunnel readings.

On the top of the top tube the integrated control centre houses the barrel adjusters or battery ports for an electronic drive train. The positioning of the control centre means it is easily accessible while also tucked away for the best possible aerodynamics.

Trek have also redesigned the seat mast for an even greater level of adjustment and comfort. The system is ultra-lightweight and aero and allows you to adjust the seatpost hight millimetre by millimetre for a precise and efficient level of accuracy. The IsoSpeed decoupler boosts vertical compliance in the seat tube enhances comfort while also maximising the amount of power you can generate through the pedals without vertical flex.

Other exquisitely designed features include the Aero 3S chain keeper, which contributes to flawless shifting performance without the threat of a dropped chain off the inside ring. The Madone 9 Series is DuoTrap S compatible and has precision water bottle mounts that offset drag.

Trek have continued their close working relationship with Bontrager to kit this superb bike out in appropriately high quality gear. The Paradigm RXL saddle features carbon rails to save weight and improve comfort, whilst the Bontrager Aura wheels are tubeless ready and appropriately aerodynamic to match the rest of the bike, as well as being finished off nicely with R4 Hard-Case Lite aramid bead 700x23c tyres.

Unlike Madones of the past though, Trek have produced their own micro-adjust carbon seatpost and XXX integrated bar and stem for added aerodynamics and stiffness. Thankfully these come with their own specifically designed computer and light mounts.

Features

  • Designed in conjunction with Trek Factory Racing Professional Cycling Team
  • Full Shimano Ultegra eleven speed mechanical drivetrain
  • 600 Series OCLV carbon fibre, KVF (Kammtail Virtual Foil) tube shape
  • H2 fit, is a geometry that offers performance and comfort in equal measure
  • Invisible cable routing
  • Micro-adjust seatmast
  • Madone aero, integrated, direct mount brakes
  • BB90 bottom bracket
  • DuoTrap S compatible

Specification

FRAME Trek 600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Madone IsoSpeed, Micro-adjust seatmast, E2, BB90, invisible cable routing, Control centre, precision water bottle placement, Aero 3S chain keeper, DuoTrap S compatible
FORKTrek Madone KVF full carbon, carbon E2 asymmetric steerer, carbon dropouts, integrated brake and stem
HEADSET Madone integrated, stainless cartridge bearings, sealed, 1-3/8" top, 1.5" bottom
STEMMadone XXX Integrated bar/stem, OCLV Carbon, 7-degree, aero top cap pocket, w/Blendr computer & light mounts
HANDLEBARMadone XXX Integrated Bar/Stem, KVF profile, Invisible cable routing, OCLV carbon, VR-CF
HANDLEBAR TAPEBontrager Supertack tape
FRONT BRAKEMadone aero, integrated, direct mount
REAR BRAKEMadone aero, integrated, direct mount
BRAKE LEVERSShimano Dura-Ace
FRONT DERAILLEURShimano Dura-Ace, braze-on
REAR DERAILLEURShimano Dura-Ace
SHIFT LEVERSShimano Dura-Ace 11-25, 11-speed
CASSETTEShimano Dura-Ace, 11-28, 11-speed
CHAINShimano Dura-Ace
CRANKSETShimano Dura-Ace, 50/34 (compact)
PEDALS-
WHEELSBontrager Aura Tubeless Ready
TYRESBontrager R4 Hard-Case Lite, aramid bead, 700x23c
SADDLEBontrager Paradigm RXL, carbon rails
SEATPOSTMadone micro-adjust carbon seatmast cap, 25mm offset
FRAME FITH2

Image shown for representation of colour way only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.

Technical Specification

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
