Description
The frameset of the Trek Madone SLR 6 Disc Road Bike is constructed from their lightest carbon to date. 800 Series OCLV Carbon is stiff yet vertically compliant, and the top tube incorporates IsoSpeed, adding adjustable compliance to further absorb vibrations. An elastomer ensures this damping effect is smooth, controlled and stable. Designed as an aero race bike, the Madone uses Kammtail Virtual Foil tubing to minimise drag so the air flows smoothly over the bike with as little resistance as possible. Further contributing to this design are completely hidden cables, plus an aero stem, handlebar and seatpost.

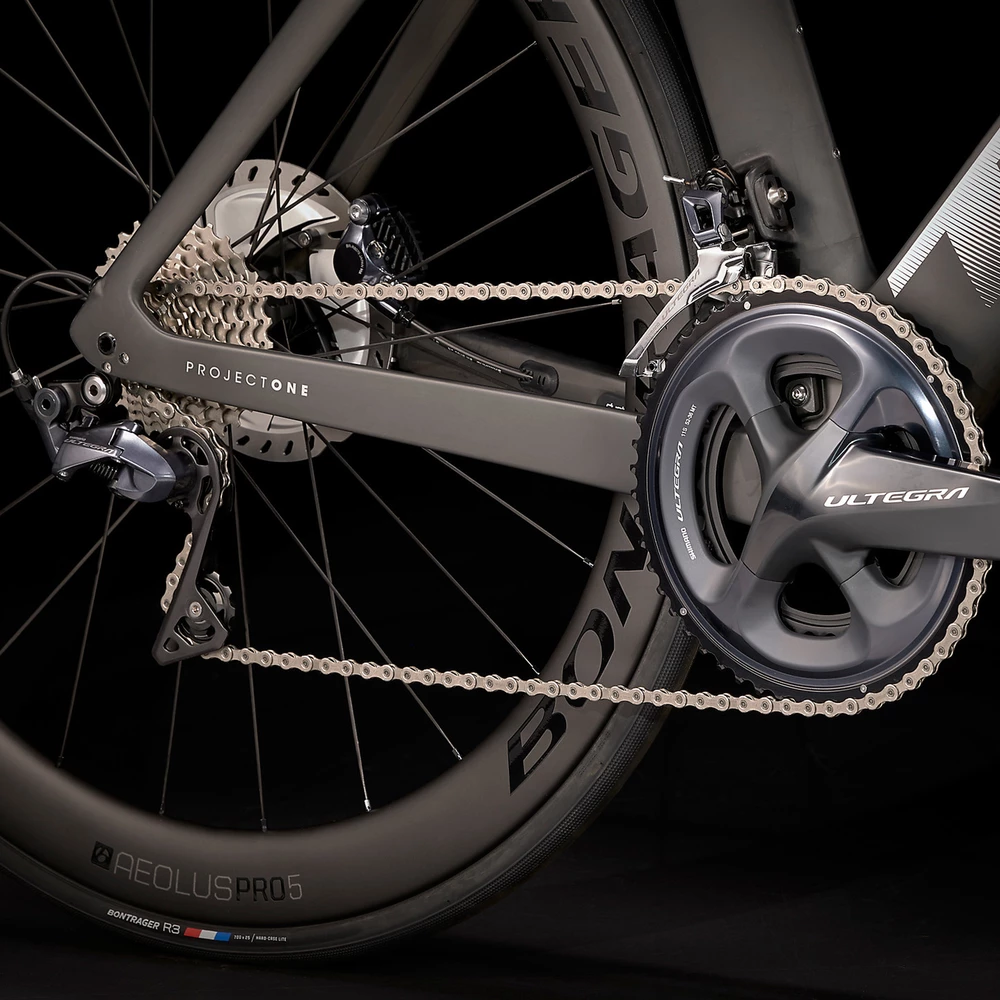

Shimano's Ultegra groupset takes care of both shifting and braking. The 2x11-speed mid-compact configuration provides a wide range of gears and going between them is smooth, precise and fast. Hydraulic discs bring all-weather stopping power for confidence at speed and on technical circuits. The Madone rolls on 50mm deep Bontrager Aeolus Pro 5 wheels that can be set up tubeless with ease.
Frame | Trek 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S compatible, flat mount disc, 142x12mm thru-axle |
Fork | Trek Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru-axle |
Headset | Trek Madone integrated, stainless cartridge bearings, sealed, 1-3/8˝ top, 1.5˝ bottom |
Bottom Bracket | Praxis Works, T47 threaded, internal bearing |
Stem | Trek Madone aero, invisible cable routing, 7 degree |
Handlebar | Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93mm reach, 123mm drop |
Bar Tape | Bontrager Supertack Perf tape |
Front Brake | Shimano Ultegra hydraulic disc, flat mount |
Rear Brake | Shimano Ultegra hydraulic disc, flat mount |
Brake Levers | Shimano Ultegra R8020 |
Front Derailleur | Shimano Ultegra R8000, braze-on |
Rear Derailleur | Shimano Ultegra R8000, short cage, 30T maximum cog |
Shift Levers | Shimano Ultegra R8020, 11-speed |
Chain | Shimano Ultegra HG701, 11-speed |
Cassette | Shimano Ultegra R8000, 11-30, 11-speed |
Crankset | Shimano Ultegra R8000, 52/36 |
Front Wheel | Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 100x12 |
Rear Wheel | Bontrager Aeolus Pro 5, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 50mm rim depth, 142x12 |
Front Tyre | Bontrager R3 Hard-Case Lite, aramid bead, 120 TPI, 700x25c, clincher |
Rear Tyre | Bontrager R3 Hard-Case Lite, aramid bead, 120 TPI, 700x25c, clincher |
Saddle | Bontrager Aeolus Elite, austenite rails, 145mm width |
Seatpost | Trek Madone aero carbon internal seatmast cap, integrated light mount, 25mm offset |
Pedals | Available to be purchased separately |
Manufacturer Claimed Weight | 8.26kg / 18.21lbs (size 56) |
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
Highlights
Product Highlights
Trek's highest grade carbon makes the frame incredibly light, stunningly responsive and compliant.
Reliable, precise and efficient, this 11-speed setup never misses a gear change.
The Madone's Kaamtail frame tube shapes make it one of the world's most aerodynamic road frames.
This top tube design uses an adjustable dampener to improve compliance at the rear of the bike.
