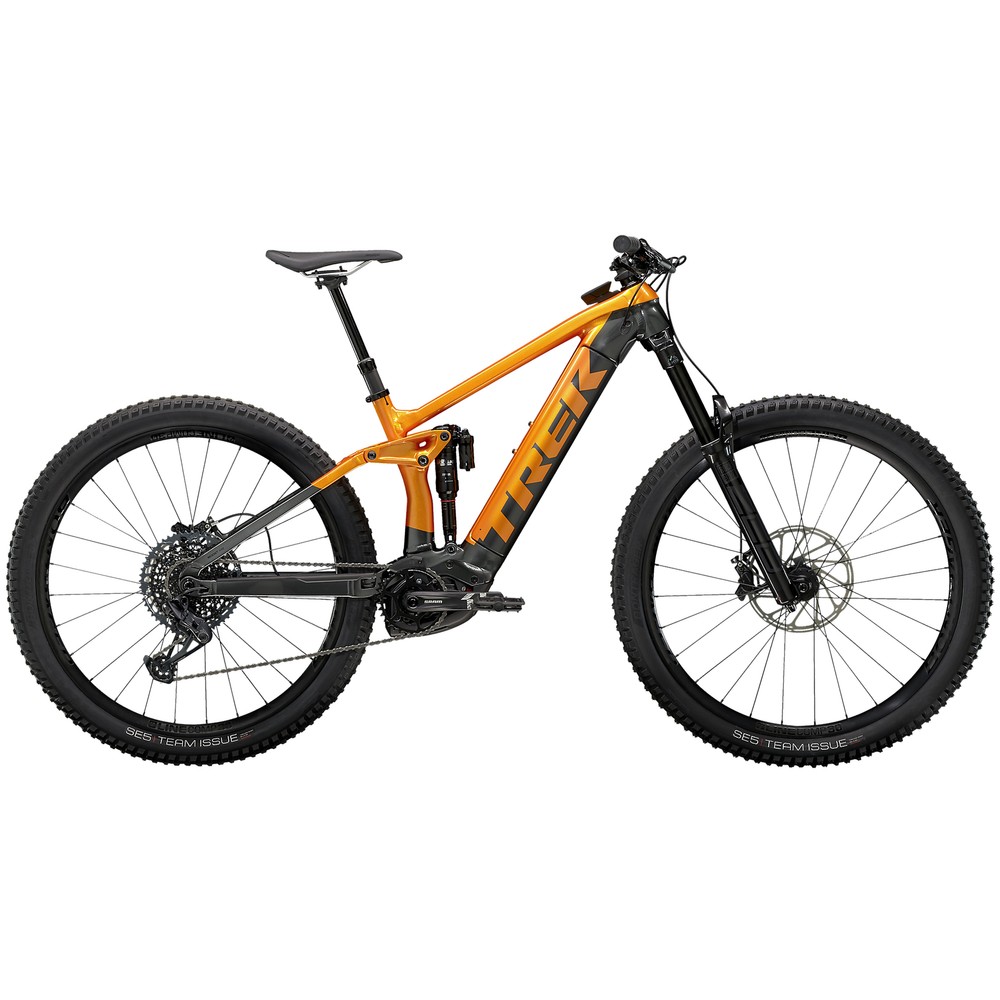

Trek Rail 9 Electric Mountain Bike 2021
The Trek Rail 9 Electric Mountain Bike is an alloy steed equipped with a premium full-suspension set up and components that eat up tough trails with glee. The addition of the powerful, compact Bosch Performance CX motor adds 250W of assistance up to 25km/h, so a power top-up comes in handy to aid challenging climbs. The Bosch PowerTube 625 battery is neatly concealed within the tough alloy frame when in use, but can be removed tool-free with ease should a charge be needed - it also completes a full charge in just under five hours.
This bike's geometry can also be fine-tuned to accommodate rider preference using the Mino Link. The RockShox ZEB fork boasts 160mm of travel for all-mountain capability, and is ultra-responsive with burly 38mm stanchions. Rear suspension comes in the form of the RockShox Super Deluxe Ultimate RT3 shock, complete with an updated damper to provide plush suspension that makes for a super smooth ride.
When opening it up on descents or sweeping corners, the Bontrager Line Elite Dropper seatpost gets the saddle out of the way so weight can be kept back and low and SRAM Code R 4-piston hydraulic disc brakes provide powerful, rapid stopping. 12-speed SRAM GX Eagle components leave no need to grind it up steeper gradients, with a low 52-tooth climbing gear catering for challenging terrain and the Eagle drivetrain ensuring solid shifting.
Battery Specification
- Maximum assist: 250w
- Motor weight: 2.9kg
- Battery Power: Approximately 625Wh
Highlights
- Trek Alpha Platinum Aluminium frame with RIB
- RockShox ZEB Select+ DebonAir spring fork with 160mm of travel
- SRAM GX/X1 Eagle 12-speed components
- SRAM Code R hydraulic disc brakes
- 29” wheels with 2.60” tubeless-ready tyres
- Bontrager Line Elite Dropper seatpost gets the saddle out of the way quickly
- Bosch Performance CX 250W motor
- Bosch PowerTube 625 battery
Technical Specification
| Frame | Trek Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru-axle, 150mm travel |
| Fork | RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel |
| Rear Shock | RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5mm |
| Headset | Trek Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |
| Stem | Bontrager Line, 35mm, Knock Block, 0 degree |
| Handlebar | Bontrager Line, alloy, 35mm, 27.5mm rise |
| Grips | Bontrager XR Trail Elite, alloy lock-on |
| Front Brake | SRAM Code R hydraulic disc |
| Rear Brake | SRAM Code R hydraulic disc |
| Brake Levers | SRAM Code R |
| Rear Derailleur | SRAM GX Eagle |
| Shift Levers | SRAM GX Eagle single-click, 12-speed |
| Chain | SRAM GX Eagle, 12-speed |
| Cassette | SRAM Eagle XG-1275, 10-52, 12-speed |
| Crankset | SRAM X1 1000, 34T |
| Front Wheel | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110 |
| Rear Wheel | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost148 |
| Front Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" clincher |
| Rear Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" clincher |
| Saddle | Bontrager Arvada, hollow chromoly rails, 138mm width |
| Seatpost | Bontrager Line Elite Dropper, internal routing, 31.6mm |
| Pedals | Trek VP-536 nylon platform |
| Claimed Manufacturers Weight | Size M - 24.04kg / 53.00lbs |
| Charge time | 100% charge, 4.9 hours with Standard Charger |
| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm, 25km/h |
| Ui/Remote | Bosch Kiox with Anti-theft solution |
| Battery | Bosch PowerTube 625 |
| Charger | Bosch standard 4A (220-240 V) charger |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
