Description

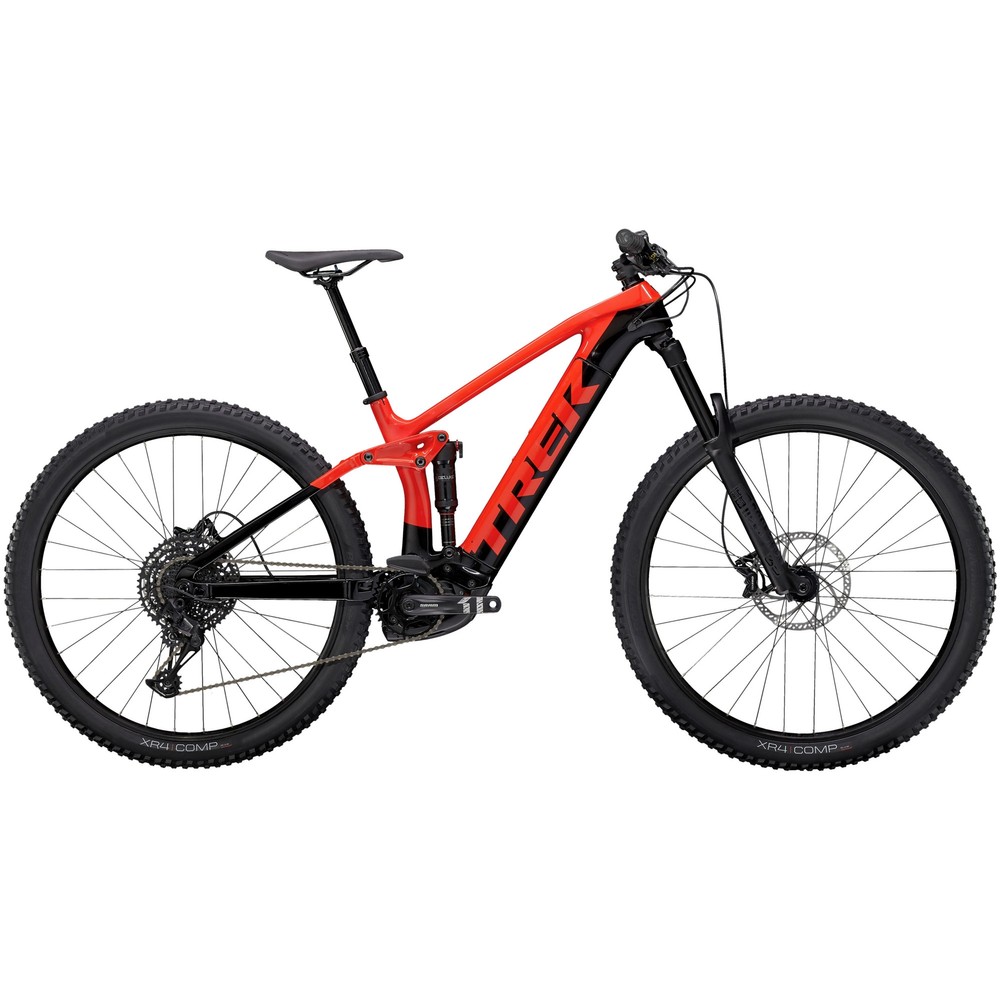

Trek Rail 9.5 Electric Mountain Bike
With a full carbon frameset and 150mm of rear suspension travel, the Trek Rail 9.5 Electric Mountain Bike is built to shred, offering confident descending performance with all the power to boost your way back to the top. The Bosch Performance Line CX motor system is slung low in the frame to lower the centre of gravity and delivers 85Nm of hill-crushing torque. A high capacity 625Wh PowerTube battery provides power for all-day rides, while a Bosch Purion display displays ride data such as assist settings, range and speed.
29” wheels encourage fast riding, with their increased size making it easier to stay on line through rough terrain. A slack head angle is paired with long reach measurements to improve descending performance, and longer chainstays help keep the front down when accelerating hard.
The high-value specification is ready to hit the trails straight out the box but offers room for upgrades in the future if required. A Bontrager cockpit improves handling, with the short stem and wide bar combination providing fast, controlled steering. Four-piston Tektro brakes offer ample stopping power for steep descents, and the SRAM SX Eagle single-click drivetrain is highly durable for lasting performance.
Highlights
- High-quality carbon frameset offers lightweight, stiff performance on the trail
- The Rail 5 shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain – no shuttle or lifts necessary
- Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
- Equipped with an external charging port for easy charging on or off the bike
- Made with the same exclusive frame tech as the Remedy and Slash models, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
- 12-speed SRAM SX Eagle drivetrain provides a wide range of gears to suit all gradients
Battery Specification
- Maximum assist: 250w
- Motor weight: 2.9kg
- Battery Power: 625Wh
Technical Specification
| Frame | Trek OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12mm thru-axle, 150mm travel |
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, e-MTB optimised, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel |
| Rear Shock | RockShox Deluxe Select+, 230x57.5mm |
| Stem | Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Front Brake | Tektro HD-M745 Four-piston hydraulic disc / Tektro, 203mm, 6-bolt rotor |
| Rear Brake | Tektro HD-M745 Four-piston hydraulic disc / Tektro, 203mm, 6-bolt rotor |
| Brake Levers | Tektro HD-M745 |
| Rear Derailleur | SRAM SX Eagle, 12-speed |
| Shift Levers | SRAM SX Eagle single-click, 12-speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12-speed |
| Crankset | SRAM X1 1000, 36T chainring, 165mm length |
| Front Wheel | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru-axle hub / Alex MD35, tubeless-ready, 32-hole, 35mm width, Presta valve rims |
| Rear Wheel | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru-axle hub / Alex MD35, tubeless-ready, 32-hole, 35mm width, Presta valve rims |
| Front Tyre | Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60", clincher |
| Rear Tyre | Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60", clincher |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
| Seatpost | Size S - TranzX JD-YSP18 dropper, 100mm travel, internal routing, 31.6mm, 361mm length / Size M, L, XL - TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
| Pedals | VP-536 nylon platform |
| Motor | Bosch Performance Line CX, 250 Watt, 75Nm, magnesium body, 25 km/h max assist |
| Ui/Remote | Bosch Purion |
| Battery | Bosch PowerTube 625Wh |
| Manufacturer Claimed Weight | 22.76kg (with tubes) |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
