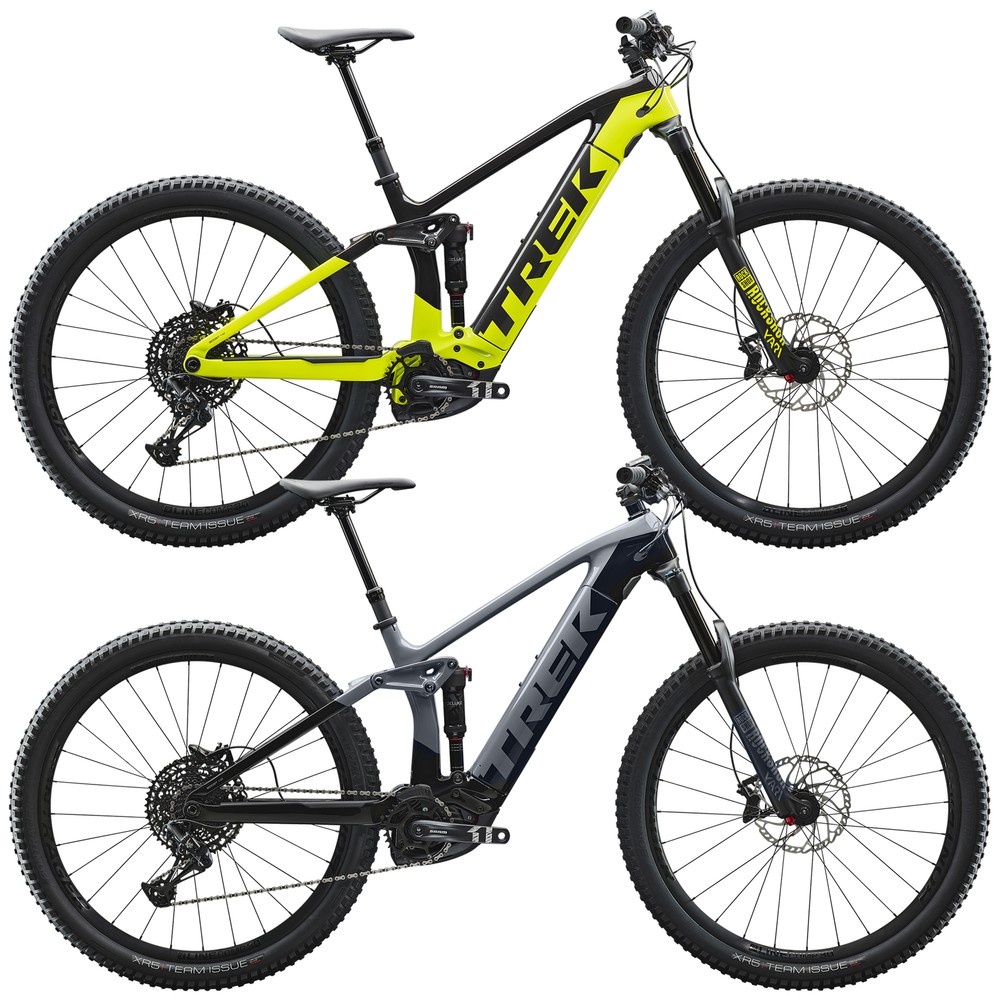

Trek Rail 9.7 NX Eagle Electric Mountain Bike 2020

£6,750.00

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1176230

With maximum trail bike performance and an electric pedal-assist motor too, Trek’s Rail 9.7 NX Eagle Electric Mountain Bike is ideal for those who want to enjoy more downhill action every ride.

The 150mm travel frame and 160mm travel fork provide great control and traction whilst the SRAM drivetrain and Shimano hydraulic disc brakes are reliable and confidence-inspiring.

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

Trek Rail 9.7 NX Eagle Electric Mountain Bike 2020

Trek’s Rail 9.7 NX Eagle Electric Mountain Bike is a purposeful, well-equipped trail bike with a 250W Bosch Performance CX motor and 625Wh battery to help on the way back up, meaning more time spent smiling and less time spent grinding uphill. The burly aluminium frame has a RockShox Deluxe RL shock which provides 150mm of travel and a 160mm RockShox Yari RC fork which utilises the same well-proven trail bike technologies as Trek’s non-electric bikes, like Active Braking Pivot, Knock Block and Mino Link adjustable geometry.

The motor provides four selectable assistance modes, which add anywhere between 60% and 340% of additional power, all operated whilst riding from the handlebar-mounted Purion controller. RIB technology means that the down tube integrated battery can be removed without tools for recharging off the bike.

SRAM’s 12-speed NX Eagle groupset has a very wide range 11-50t cassette for maximum help uphill whilst ensuring enough gears for the downs too, and everything is kept in check by Shimano’s MT520 4-piston hydraulic disc brakes with excellent fade-free performance. The 29” Bontrager Line Comp 30 wheels are tubeless-ready, giving the option to benefit from better grip and increased puncture protection along with the XR5 Team Issue tyres.

Highlights

  • Trek OCLV Mountain Carbon frame with RIB, internal routing and 150mm of travel
  • RockShox Deluxe RL rear shock
  • RockShox Yari RC fork with 160mm of travel
  • SRAM NX Eagle 12-speed groupset
  • Shimano MT520 4-piston hydraulic disc brakes
  • Bontrager Line Comp 30, Tubeless Ready 29” wheels with Bontrager XR5 Team Issue tyres
  • Bontrager dropper seatpost
  • Bosch Performance CX 250W motor and 625Wh removable battery

Technical Specification

FRAME Trek OCLV Mountain Carbon main frame and stays, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12mm thru-axle, 150mm travel
REAR SHOCK RockShox Deluxe RL, 230x57.5mm
FORK RockShox Yari RC, DebonAir spring, Motion Control RC damper, e-MTB optimised, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
STEM Bontrager Rhythm Comp 31.8, Knock Block, 0-degree, 60mm length
HANDLEBAR Bontrager Comp, alloy, 31.8mm, 15mm rise, 780mm width
FRONT BRAKE Shimano MT520 4-piston hydraulic disc
REAR BRAKE Shimano MT520 4-piston hydraulic disc
BRAKE LEVERS Shimano MT520 4-piston hydraulic disc
REAR DERAILLEUR SRAM NX Eagle
SHIFT LEVERS SRAM NX Eagle 12-speed
CASSETTE SRAM PG-1230 Eagle, 11-50, 12-speed
CRANKSET SRAM X1 1000, 34T, 165mm length
FRONT WHEEL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru-axle
REAR WHEEL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, SRAM XD driver, Boost148, 12mm thru-axle
FRONT TYRE Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60" clincher
REAR TYRE Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60" clincher
SADDLE Bontrager Arvada, steel rails, 138mm width
SEATPOST Bontrager Line Dropper, internal routing, 31.6mm,
BATTERY Bosch PowerTube, 625Wh
CONTROLLER Bosch Purion
MOTOR Bosch Performance CX, 250W, 75Nm, 25kph max assist
WEIGHT LIMIT 136kg (bike, rider and cargo)
MANUFACTURER CLAIMED WEIGHT 21.83kg size medium
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
