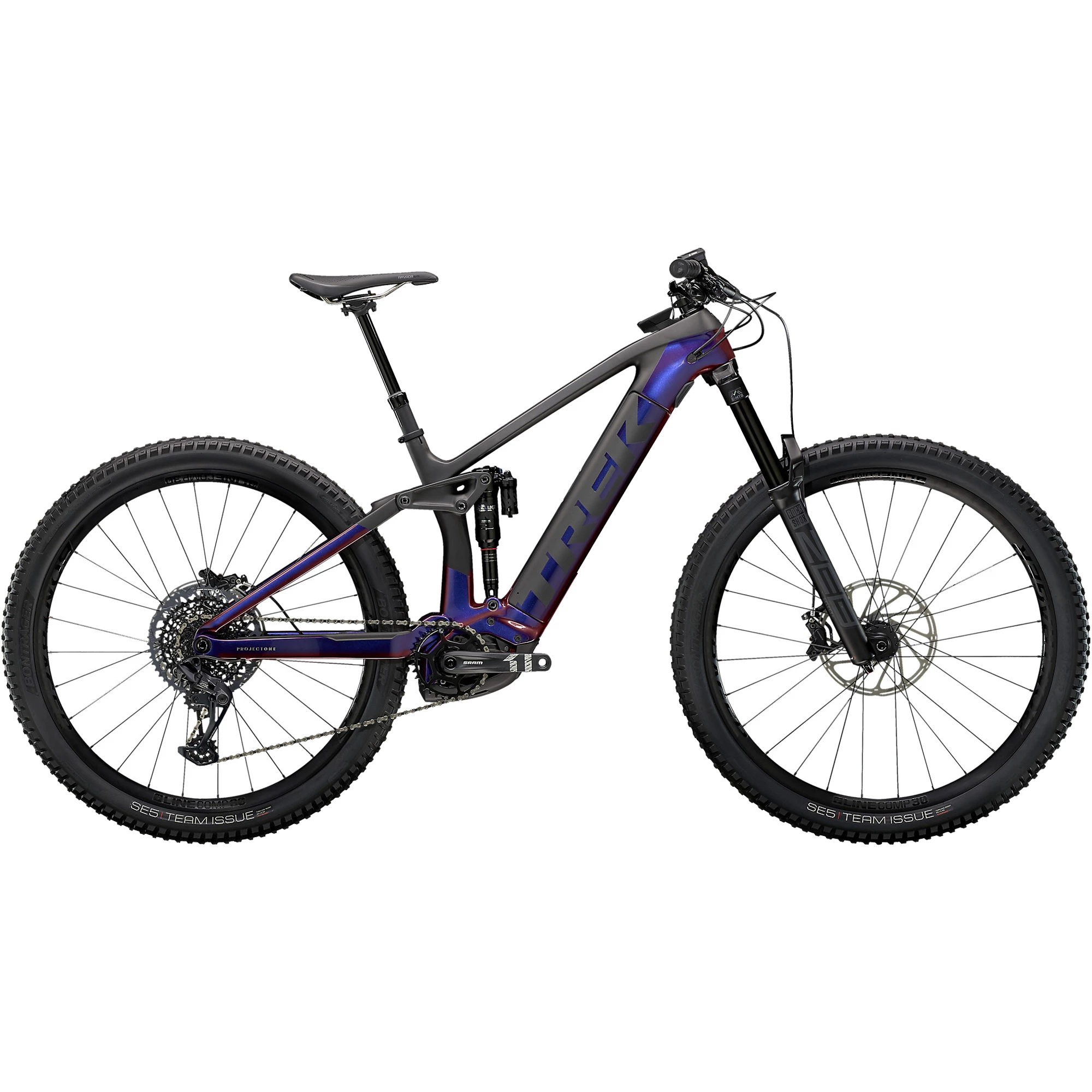

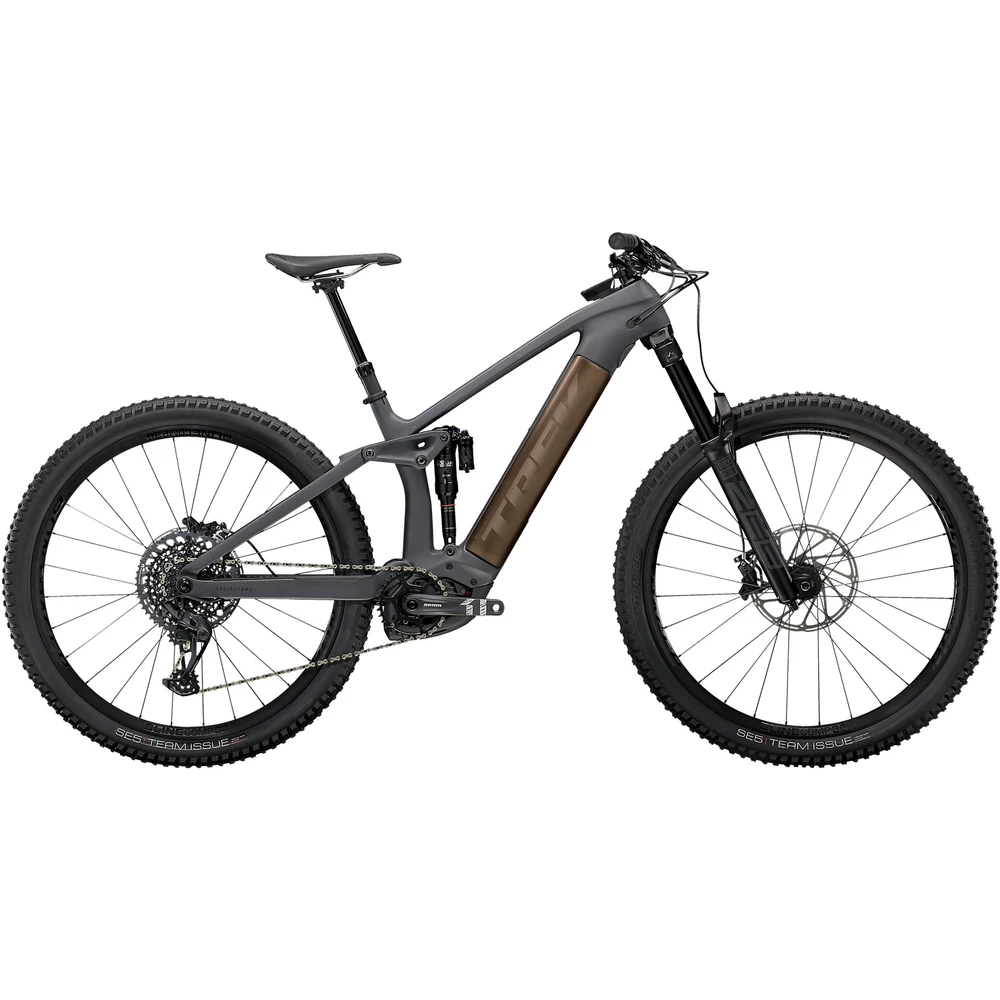

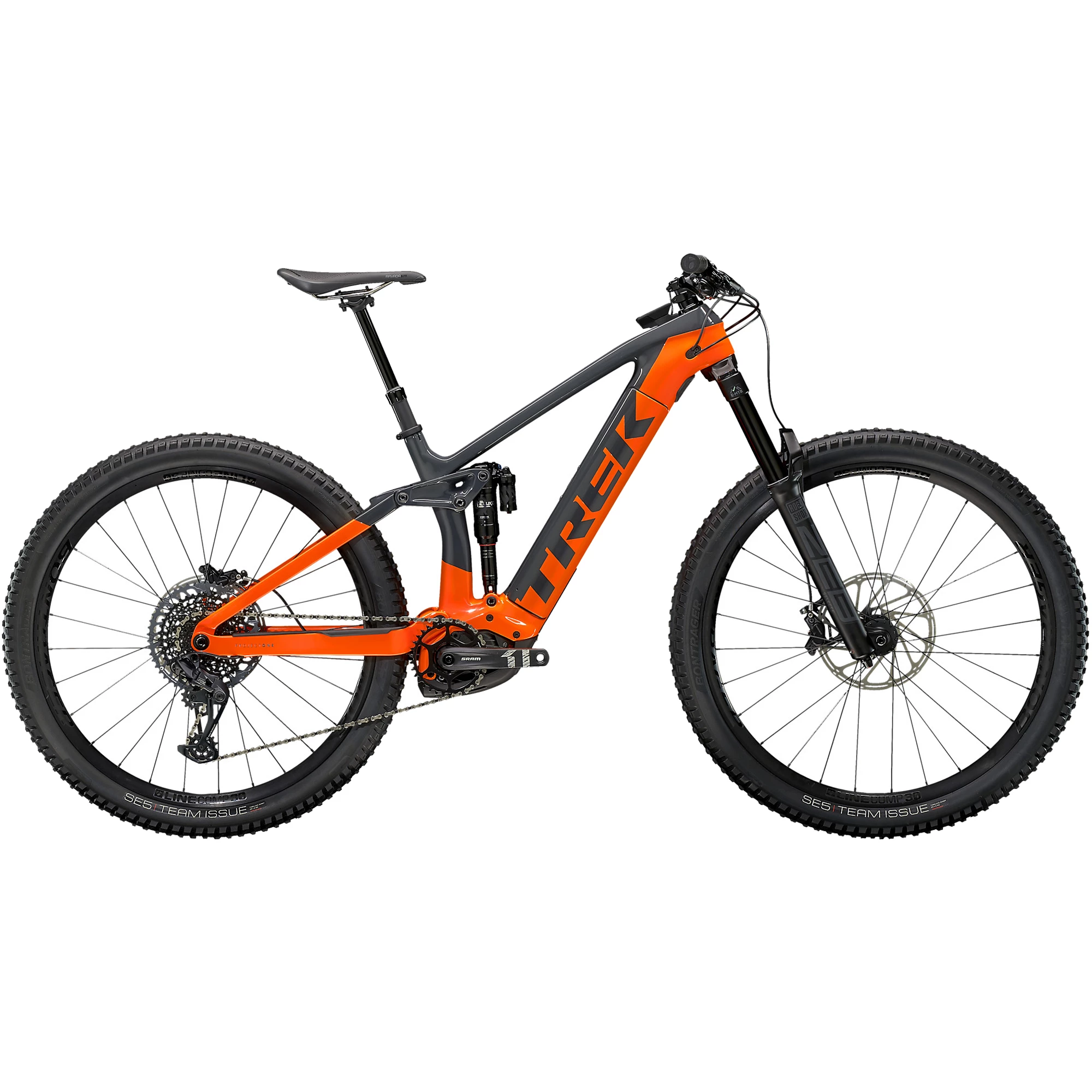

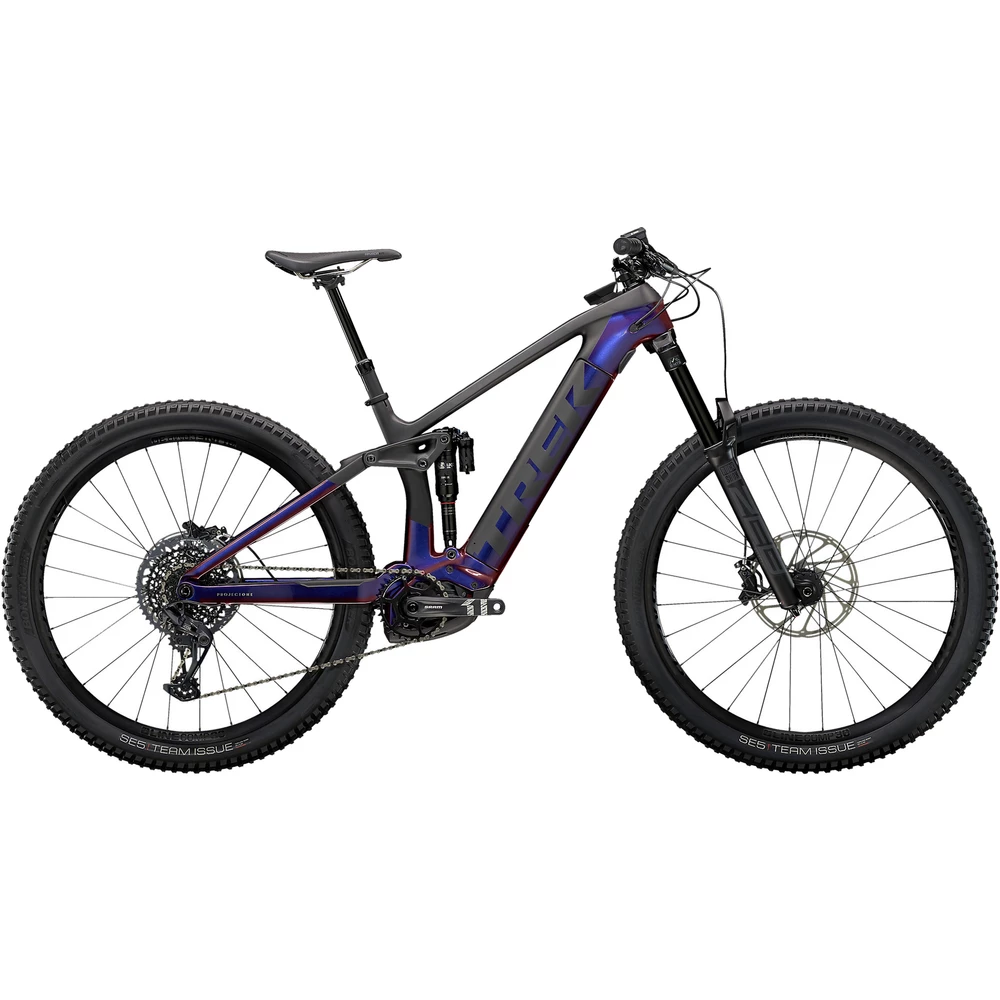

Trek Rail 9.8 GX Electric Mountain Bike 2021

The Trek Rail 9.8 GX is a long-travel Electric Mountain Bike that hammers descents and soars up climbs with an extra 250w of assistance at up to 25km/h, thanks to the Bosch Performance CX motor - Bosch's lightest, smallest and most efficient motor to date. Trek's RIB technology ensures that the Bosch Powertube 625 battery is concealed neatly within the carbon body of this bike, in the downtube, preserving a clean aesthetic and ensuring simplified, tool-free removal when a charge is required. This sleek battery integration means there's still room for a bottle cage to be mounted, and a full charge is complete in less than five hours.

Hefty 38mm stanchions on the RockShox ZEB Select+ fork mean no flexing and 160mm of plush, chatter-smoothing suspension, with 150mm to the rear in the RockShox Super Deluxe Ultimate - complete with an updated RE:aktiv thru shaft damper for swift reactions to testing terrain.

The 1x12-speed SRAM GX Eagle drivetrain means snappy shifting and gearing options to best keep pedal strokes even when gradients ramp up, resulting in consistent functioning of the motor for the most efficient application of power. A super-low 52-tooth climbing gear keeps the legs spinning over rises, whilst the single chainring streamlines post-ride maintenance.

Flip the Mino Link for a quick geometry adjustment to best suit the ride, and when weight needs to drop low over the rear wheel during descents, the Bontrager Line Elite Dropper Seatpost is a practical addition to this rip-roaring bike. Burly Bontrager SE5 Team Issue tyres ensure traction over rough terrain, and opening it up on descents is no issue with stopping duties covered by the SRAM Code R 4-piston hydraulic disc brakes.

Battery Specification

  • Maximum assist: 250w
  • Motor weight: 2.9kg
  • Battery Power: Approximately 625Wh

Highlights

  • Trek OCLV Mountain Carbon frame with RIB
  • RockShox ZEB Select+, DebonAir spring fork with 160mm travel
  • SRAM GX Eagle 12-speed components
  • SRAM Code R hydraulic disc brakes
  • 29” wheels with 2.60” tubeless-ready tyres
  • Bontrager Line Elite Dropper seatpost gets the saddle out of the way quickly
  • Bosch Performance CX 250W motor
  • Bosch PowerTube 625 battery

Technical Specification

Frame Trek OCLV Mountain Carbon main frame and stays, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru-axle, 150mm travel
Fork RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Rear Shock RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5mm
Headset Trek Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Stem Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree
Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise
Grips Bontrager XR Trail Elite, alloy lock-on
Front Brake SRAM Code R hydraulic disc
Rear Brake SRAM Code R hydraulic disc
Brake Levers SRAM Code R
Rear Derailleur SRAM GX Eagle
Shift Levers SRAM GX Eagle, 12-speed
Chain SRAM GX Eagle, 12-speed
Cassette SRAM Eagle XG-1275, 10-52, 12-speed
Crankset SRAM X1 1000, 34T
Front Wheel Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110
Rear Wheel Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost148
Front Tyre Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" clincher
Rear Tyre Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60" clincher
Saddle Bontrager Arvada, austenite rails, 138mm width
Seatpost Bontrager Line Elite Dropper, internal routing, 31.6mm
Pedals VP-536 nylon platform
Claimed Manufacturers Weight Size M - 22.52kg / 49.64lbs (with tubes)
Charge time 100% charge, 4.9 hours with Standard Charger
Motor Bosch Performance CX, magnesium motor body, 250 watts, 75 Nm, 25km/h
Ui/Remote Bosch Kiox with Anti-theft solution
Battery Bosch PowerTube 625
Charger Bosch standard 4A (220-240 V) charger
