Trek Top Fuel 9.7 Mountain Bike 2023

£4,589.99
RRP £5,100.00 Save 10%

Check to see if we have it in stock - just select your colour and size.

Trek
Top Fuel 9.7 Mountain Bike 2023

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1487001

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports cycle schemes
Cycle to Work Schemes

Save up to 47% with any one of our 11 Cycle to Work partners, and get the health benefits of a new bike in exchange for tax free salary sacrifice. To find out more about our various partners and how to apply click here.

Bike Delivery Options

Choose between Free Bike Delivery - to your home or place of work - or our new Premier Bike Delivery Service £99.99 and have your bike delivered "ready to ride" and set up to your measurements with seatpost and pedals adjusted on arrival by a qualified bike mechanic. Either way, our Customer Care team will be in touch to arrange a delivery date to suit you.

laka insurance
Laka Insurance

We've partnered with Laka to offer you 30 days free bike Insurance on your new bike purchase over £400. Click here for more info and find out how to claim.

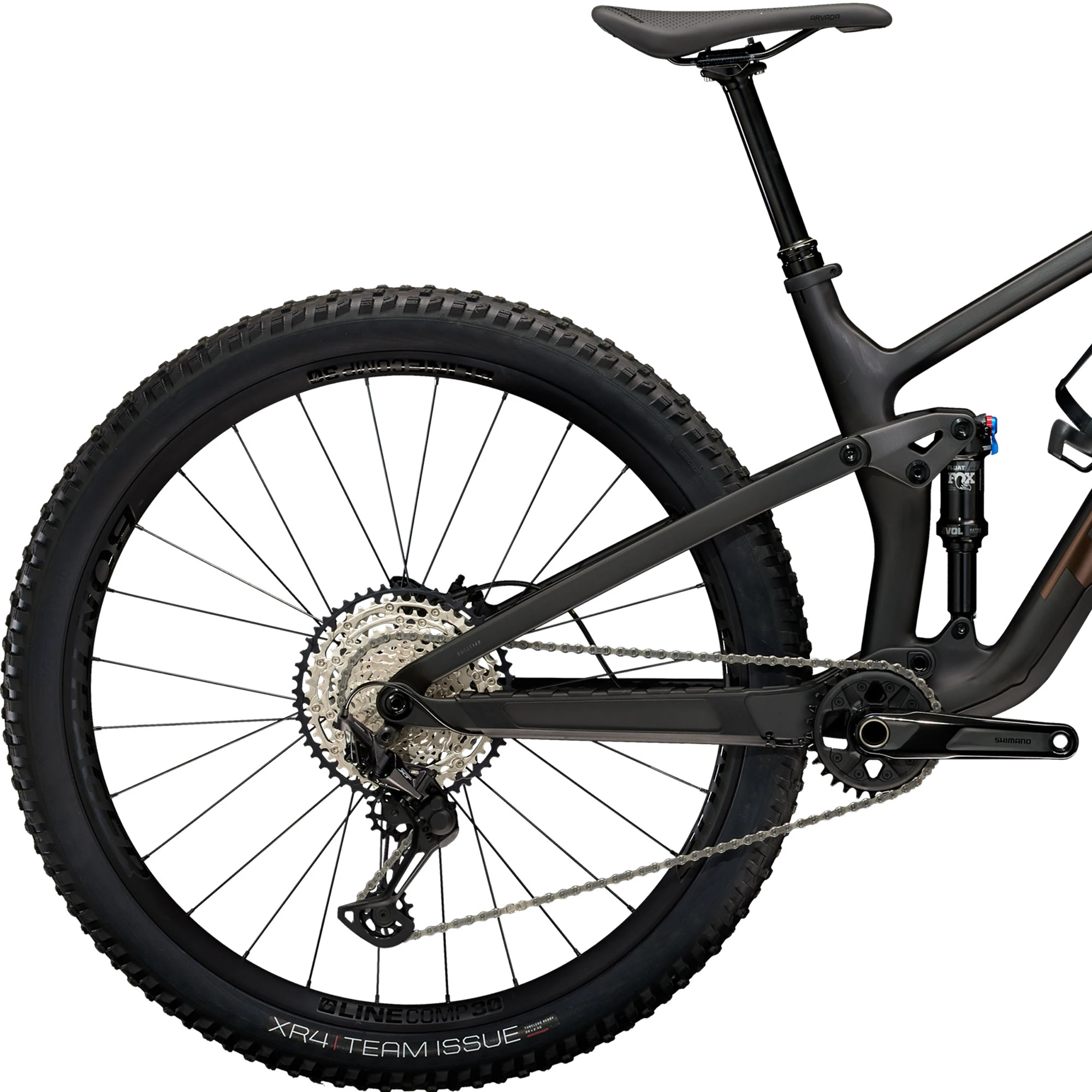

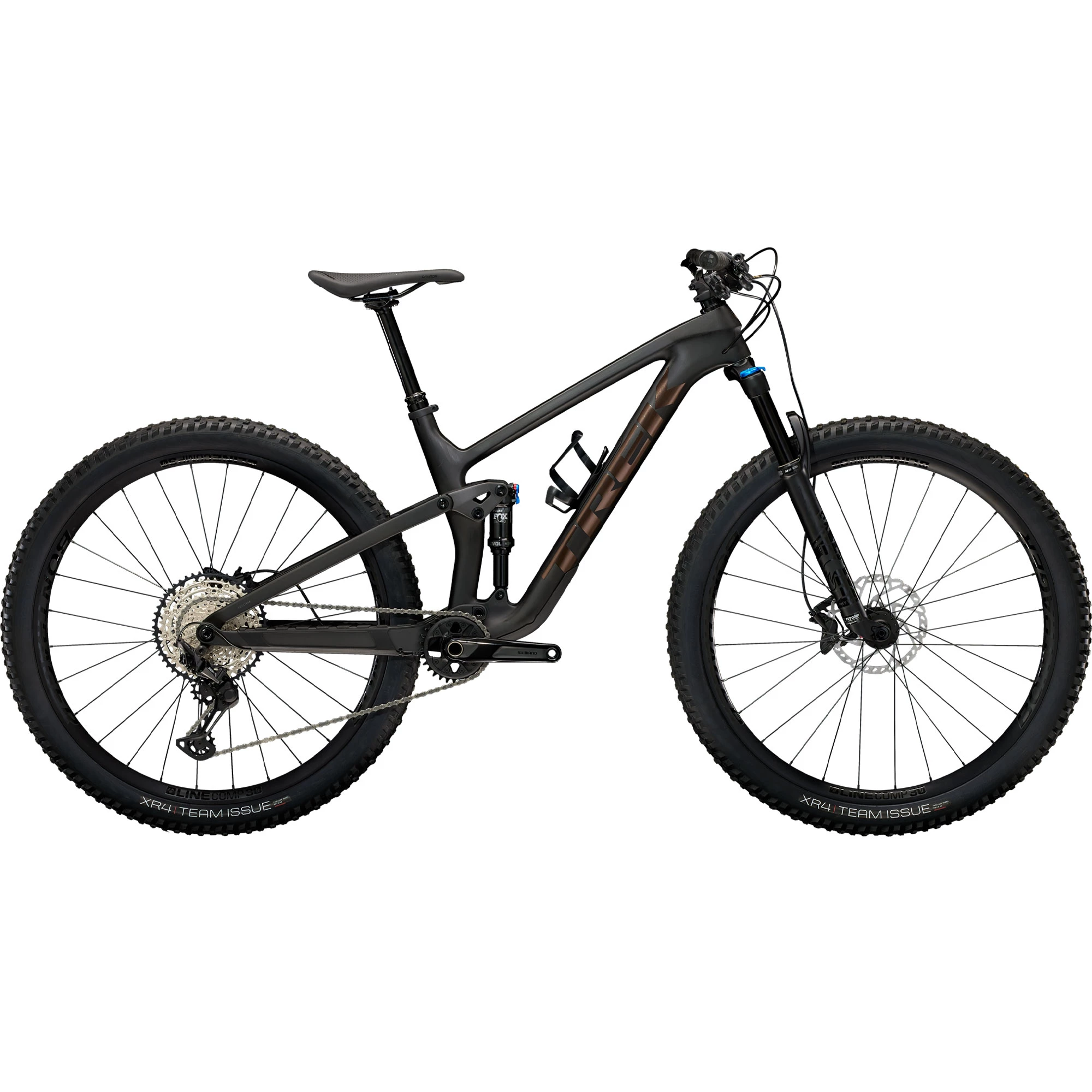

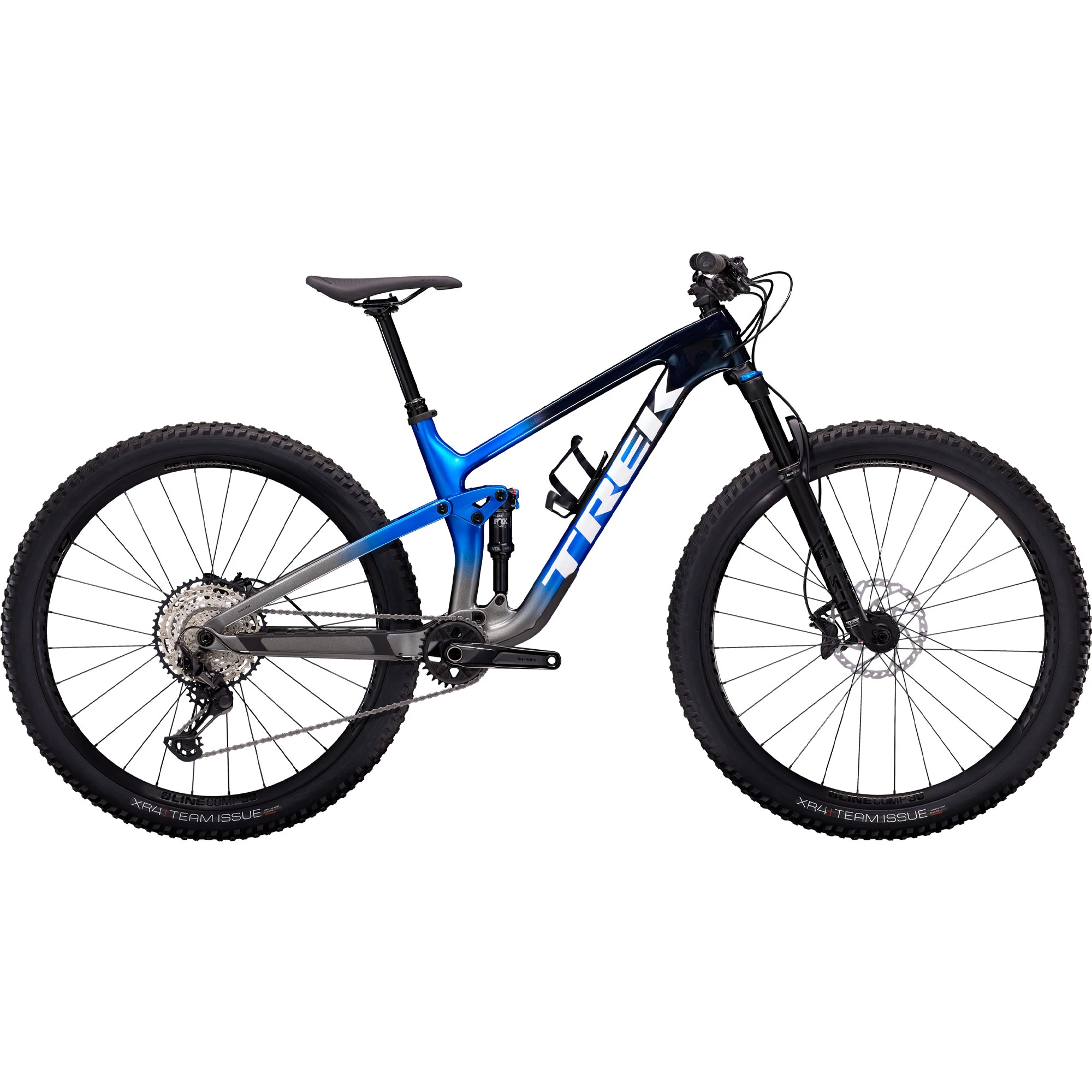

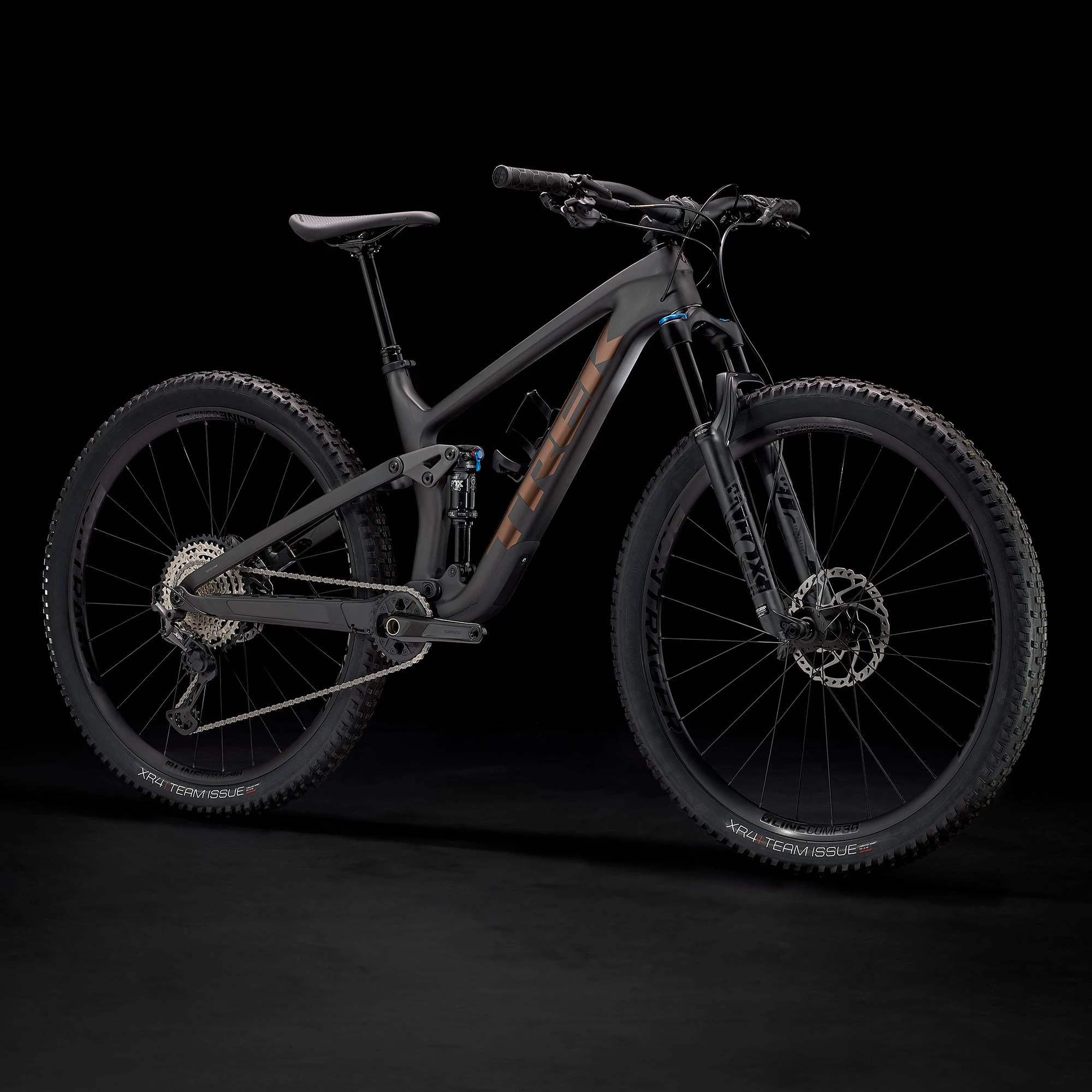

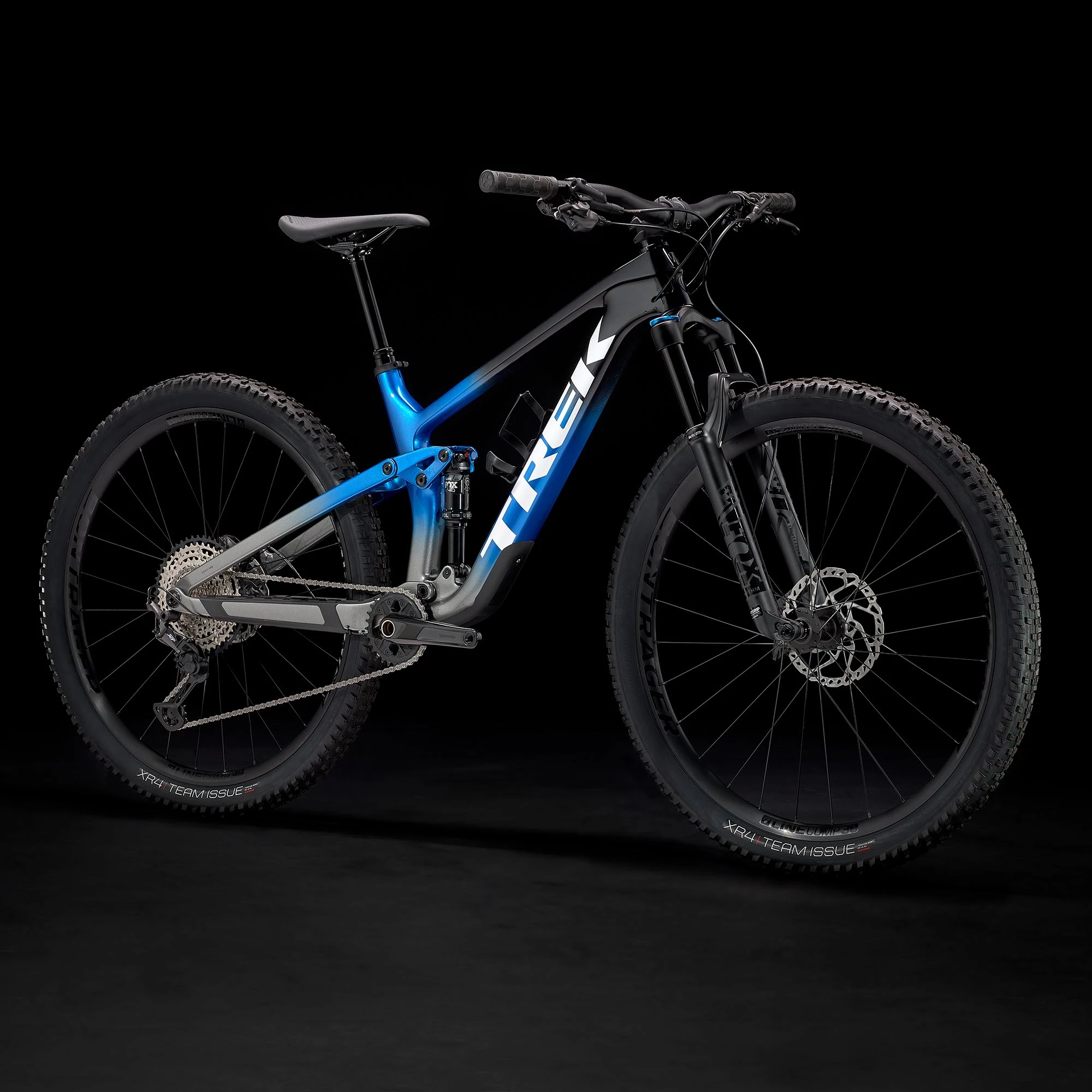

Trek Top Fuel 9.7 Mountain Bike 2023

Trek's Top Fuel 9.7 Mountain Bike combines progressive geometry with a high-performance Shimano groupset and strong alloy wheels, to create a machine that is both fast and fun, ideal for hitting the trail centre or riding your local tracks.

The Fox Rhythm 34 front fork offers 120mm of smooth travel with excellent tunability capability, and delivers the perfect balance of stiffness and weight, with the design ideal for the rigours of advanced trail riding. The frame features a FOX Performance Float DPS rear shock offering 120mm of travel within the lightweight chassis and providing pedal-friendly performance and a 3-position damper to suit a variety of terrain.

Bontrager's Line wheelset offers a confidence-inspiring feel for control over rough trails, and the wider 29mm rim width supports the tyres' sidewalls for better stability in fast corners. The Shimano Deore drivetrain features a wide-range, 12-speed cassette offering ratios suitable for the steepest hills as well as fast, flat sections.

All-weather stopping power is supplied by the Shimano Deore 4-piston hydraulic caliper and disc rotor system. The brake setup provides consistent performance and controlled confidence on any slope. The internally routed cables keep the cockpit neat and quiet on the trail, while the hidden storage in the downtube offers a solution to carrying tools and nutrition while on the move.

Highlights

  • Active braking pivot allows braking and suspension to work independently for more control
  • Integrated internal storage in the downtube for discrete accessory transportation
  • Mino Link adjustable geometry allows fine-tuning of the frames angle by simply flipping the link

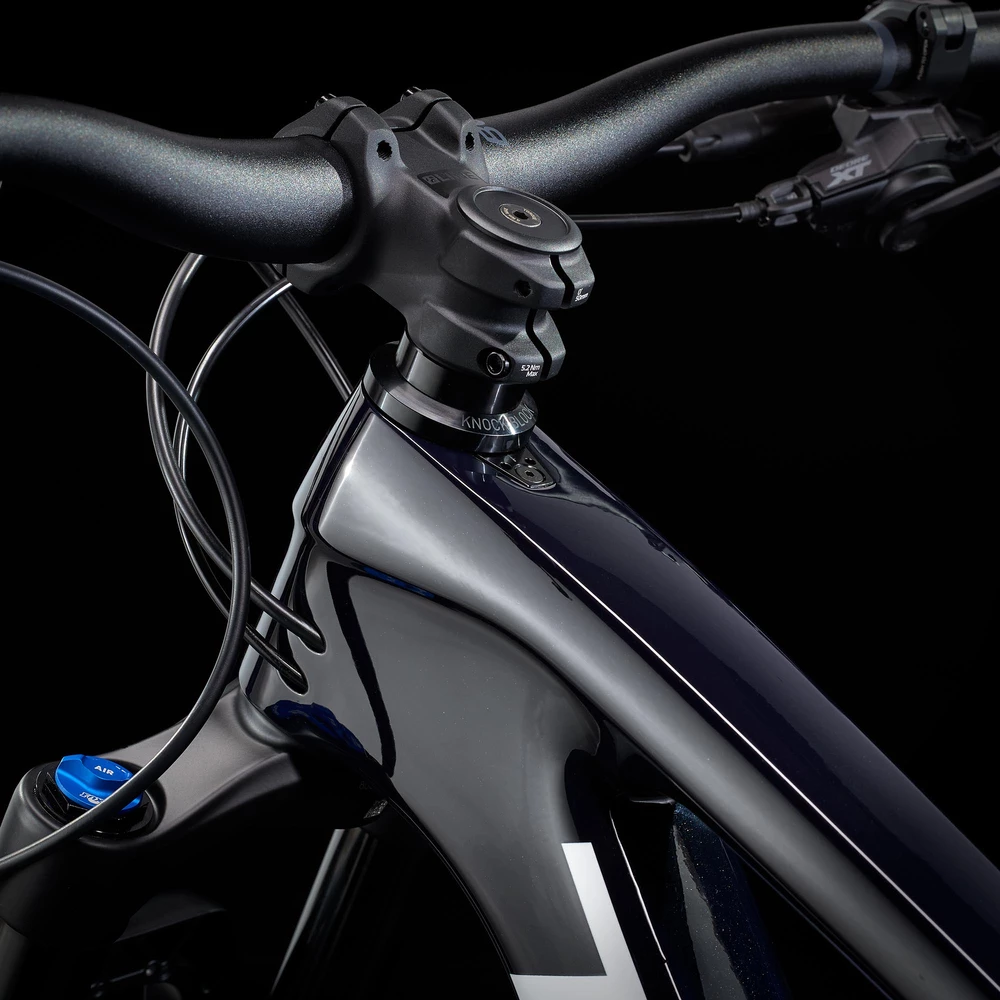

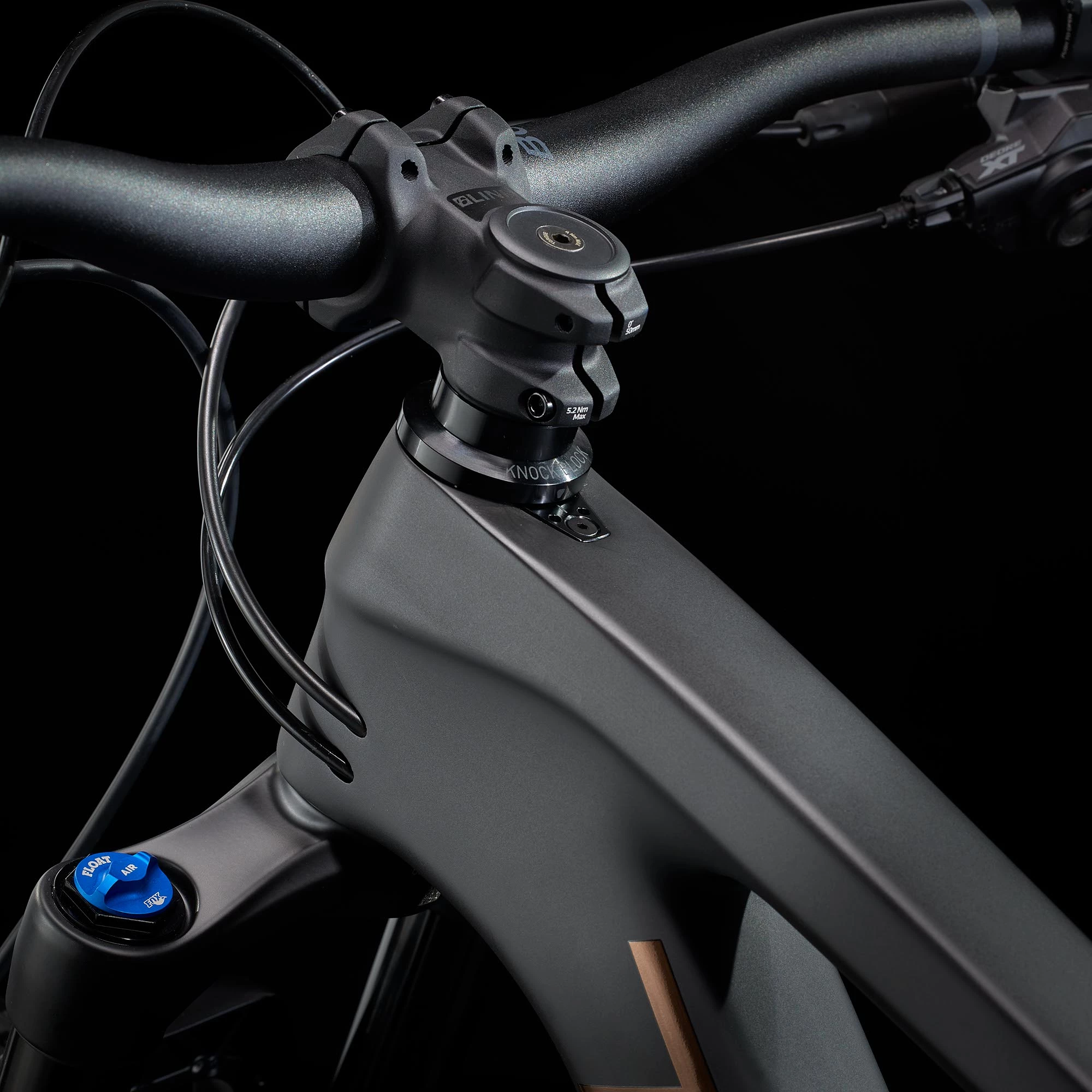

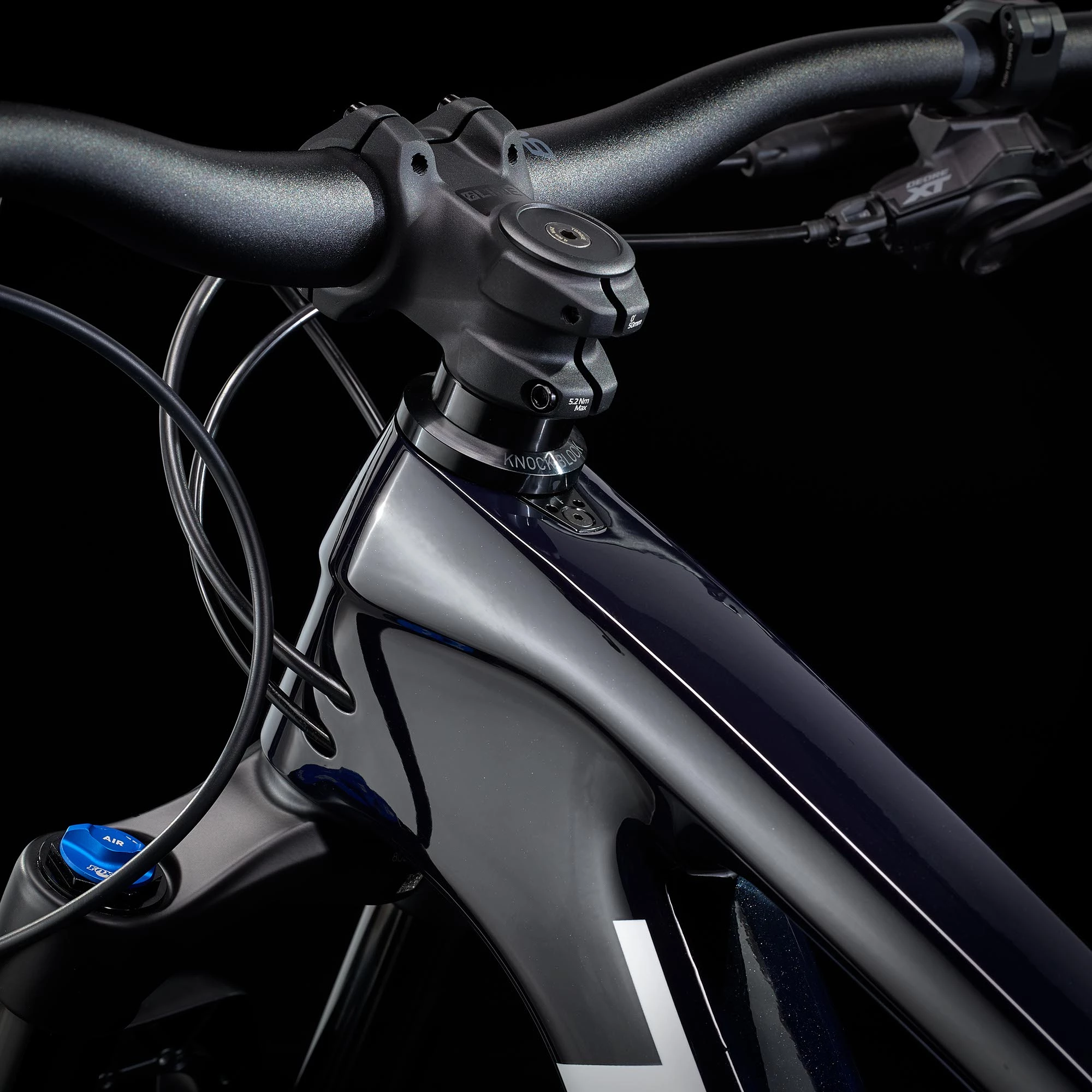

  • Knock Block in the headset prevents the handlebars from spinning in the event of a crash
  • Shimano Deore groupset with a 10-51T wide gear ratio

Technical Specification

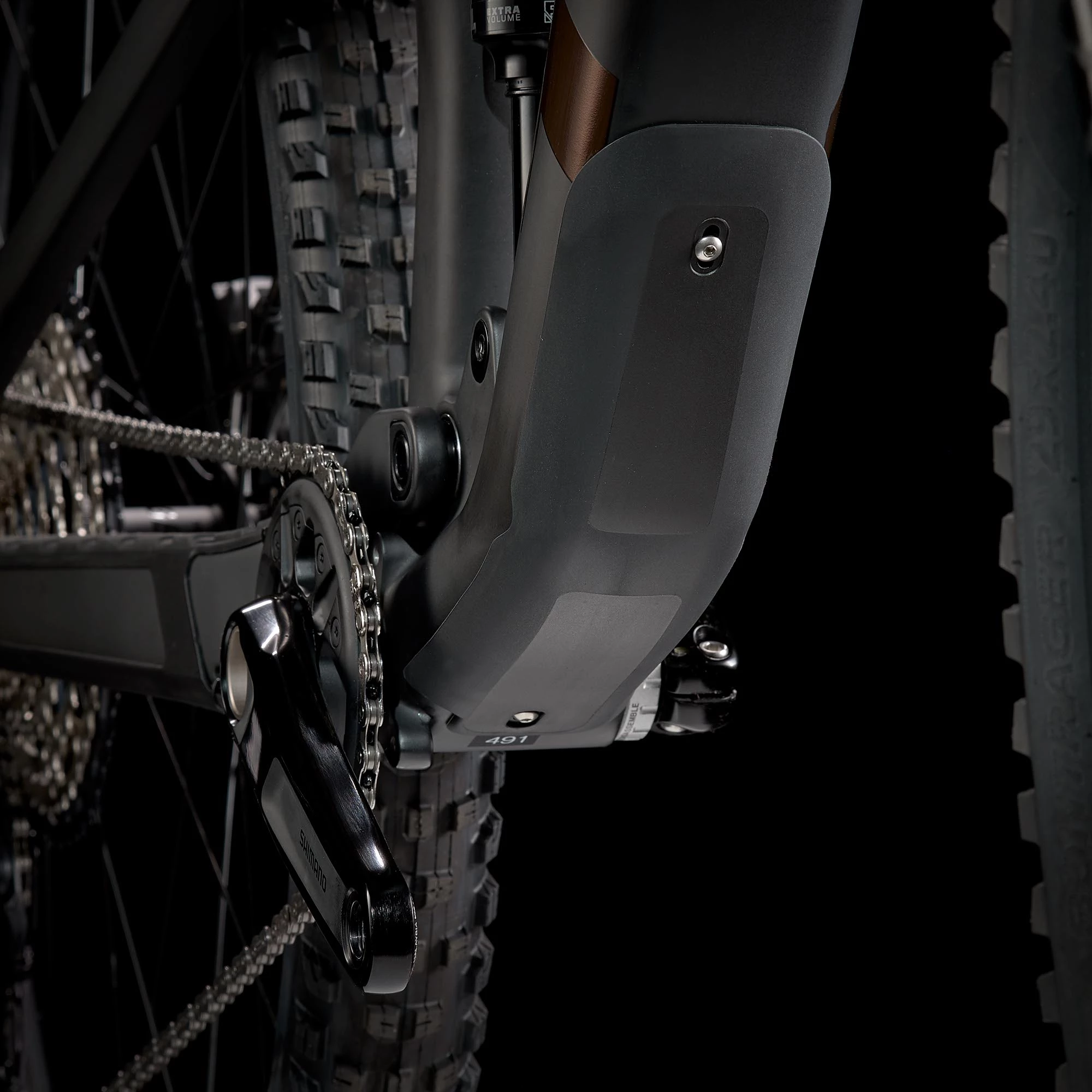

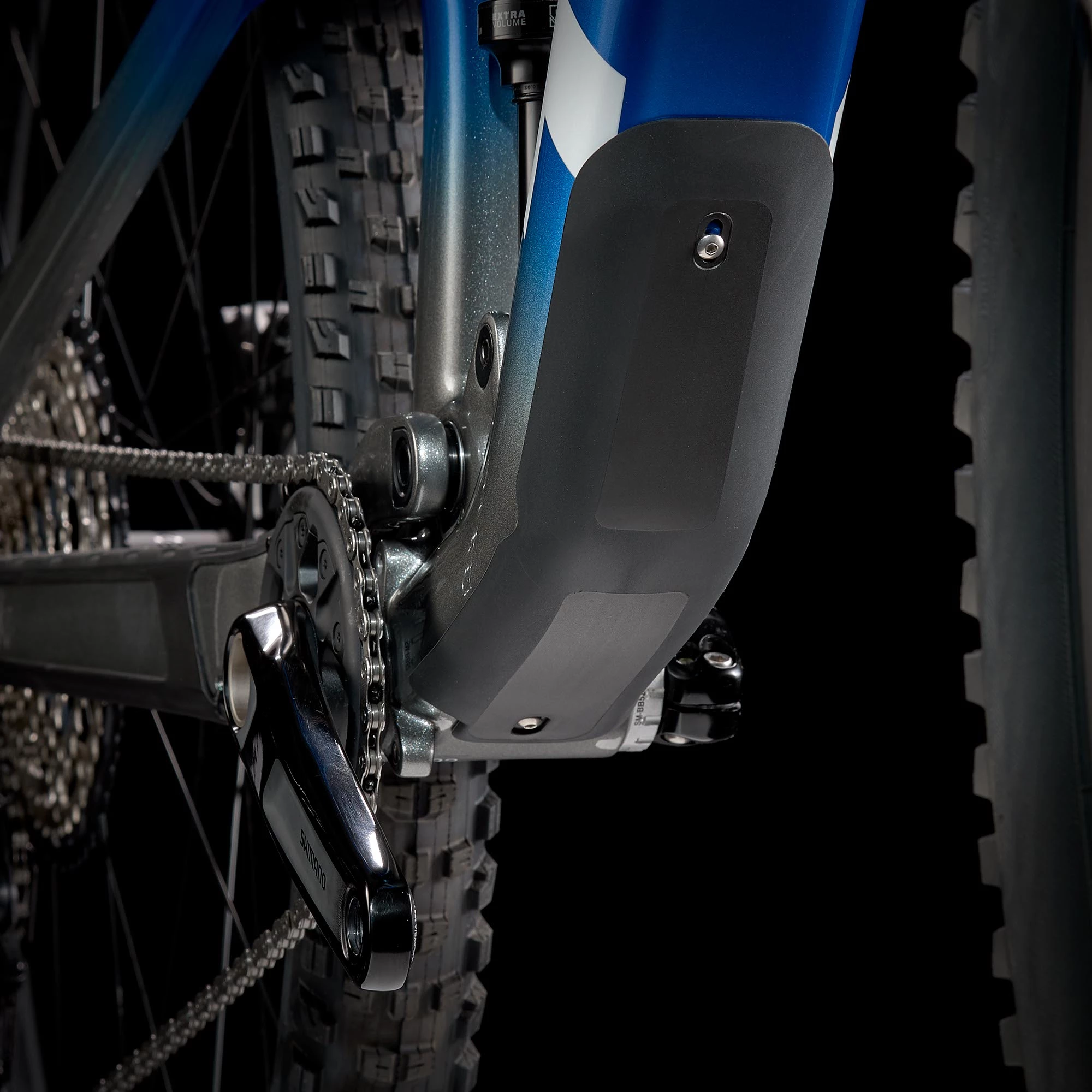

Frame Trek OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel

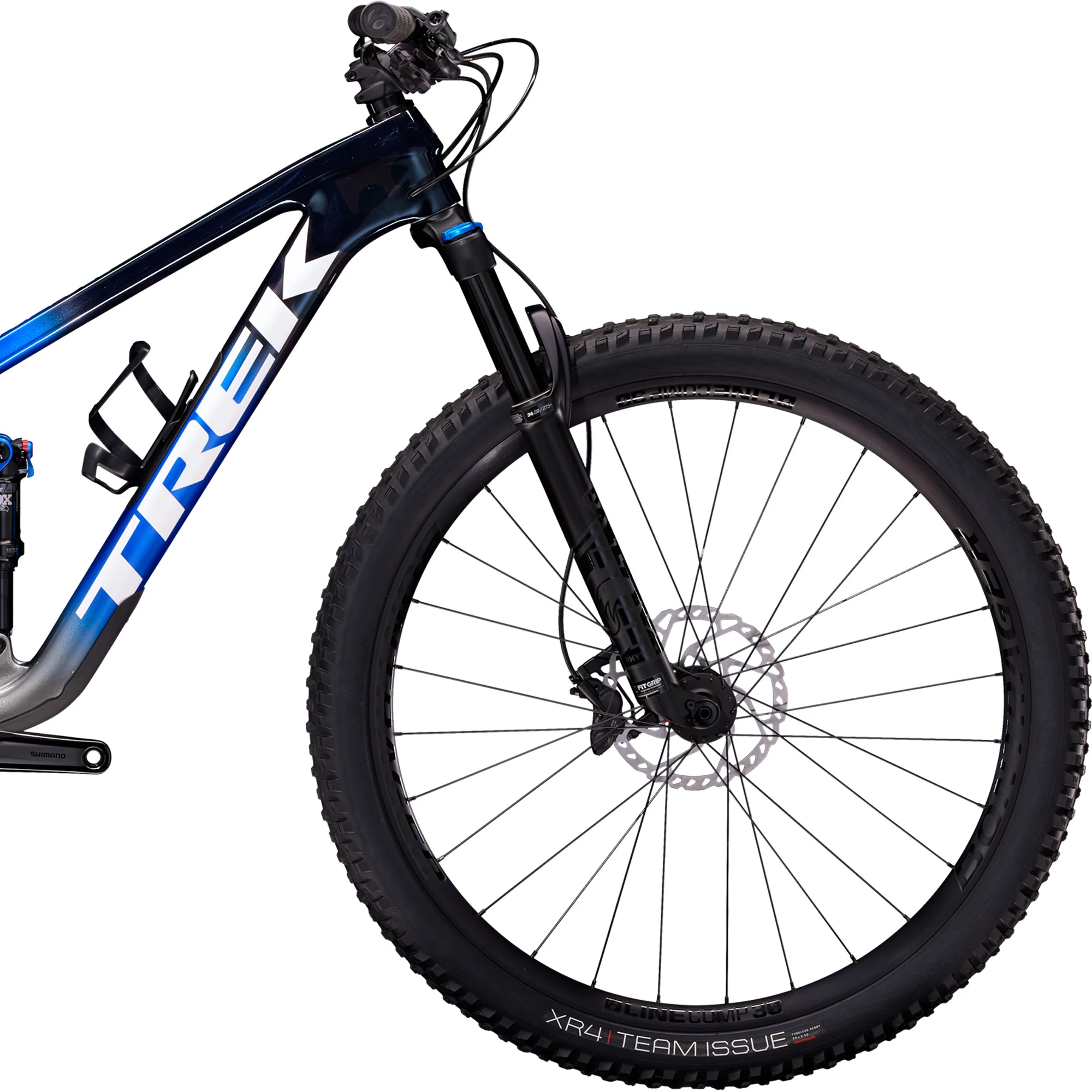

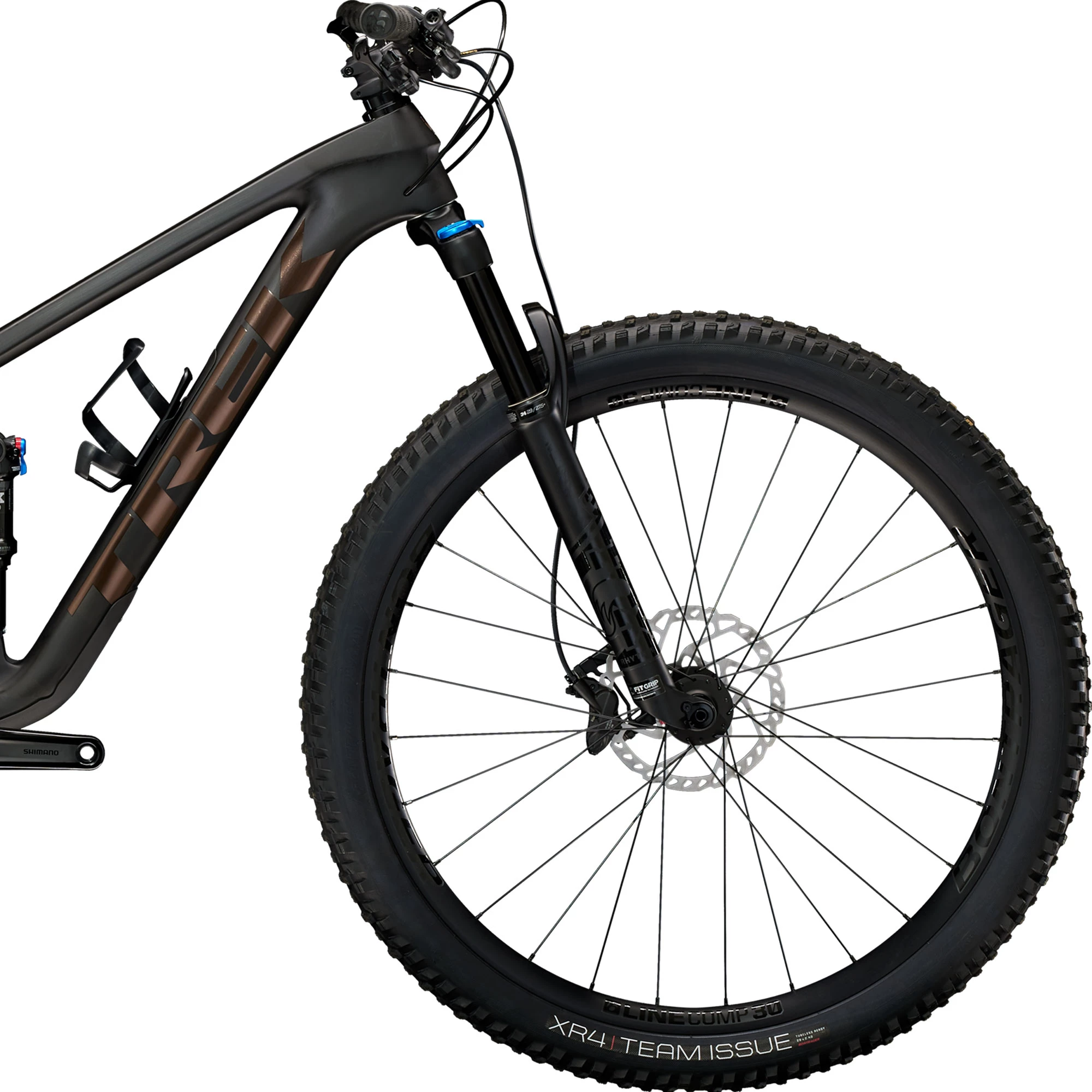

Fork FOX Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 120mm travel

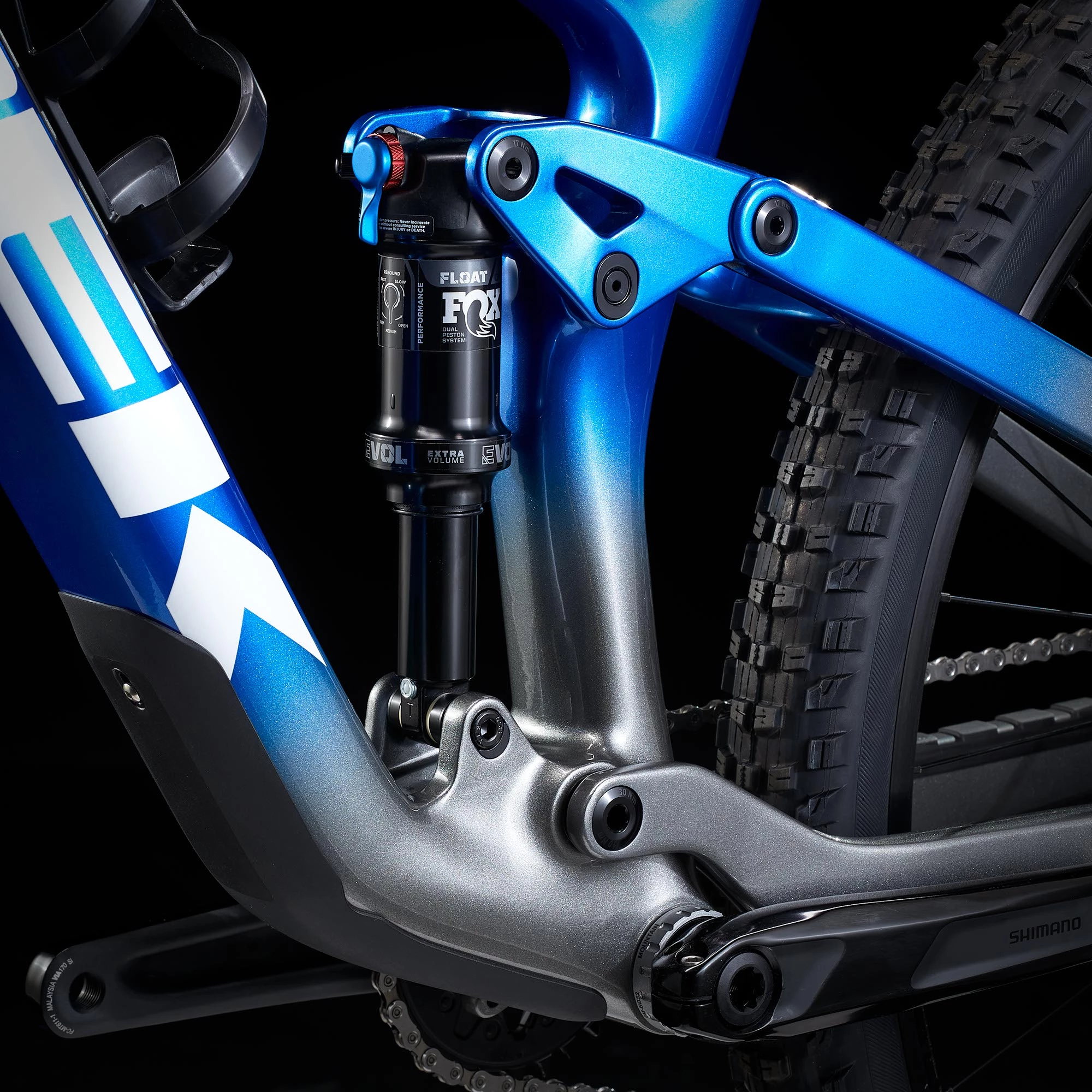

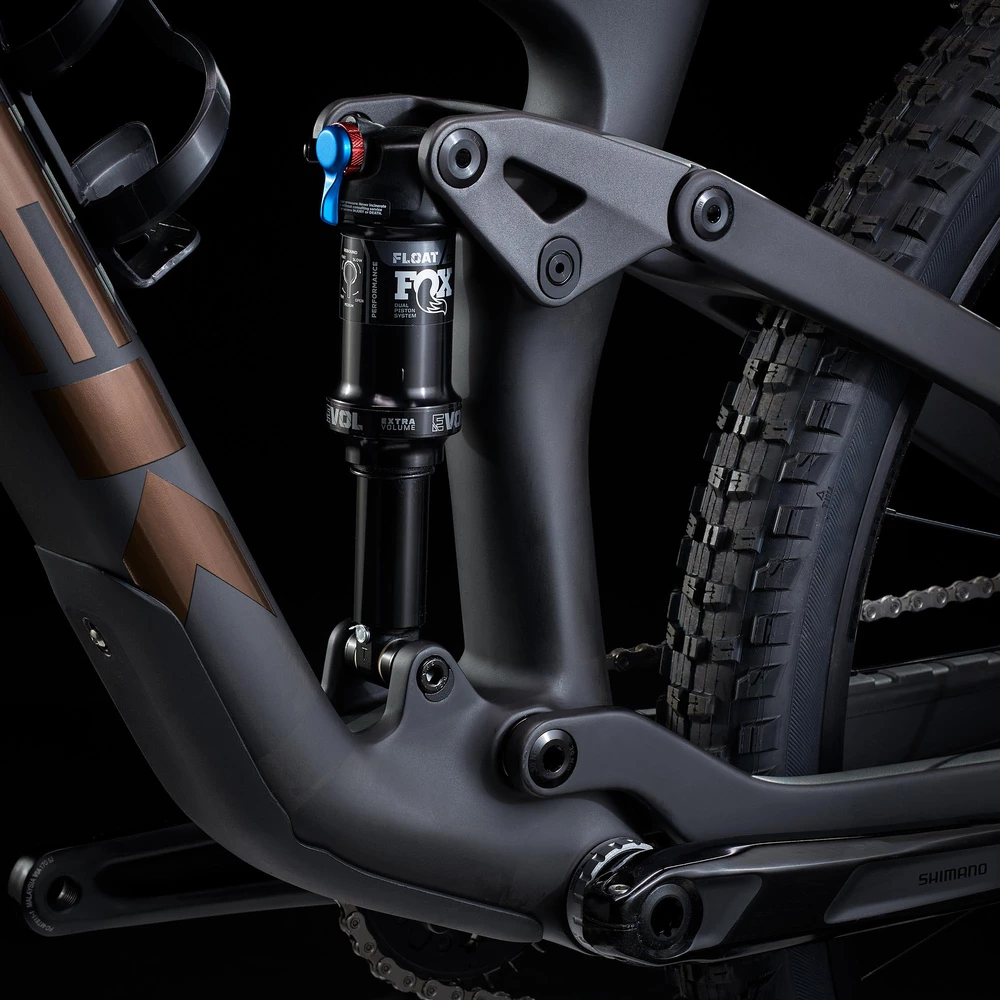

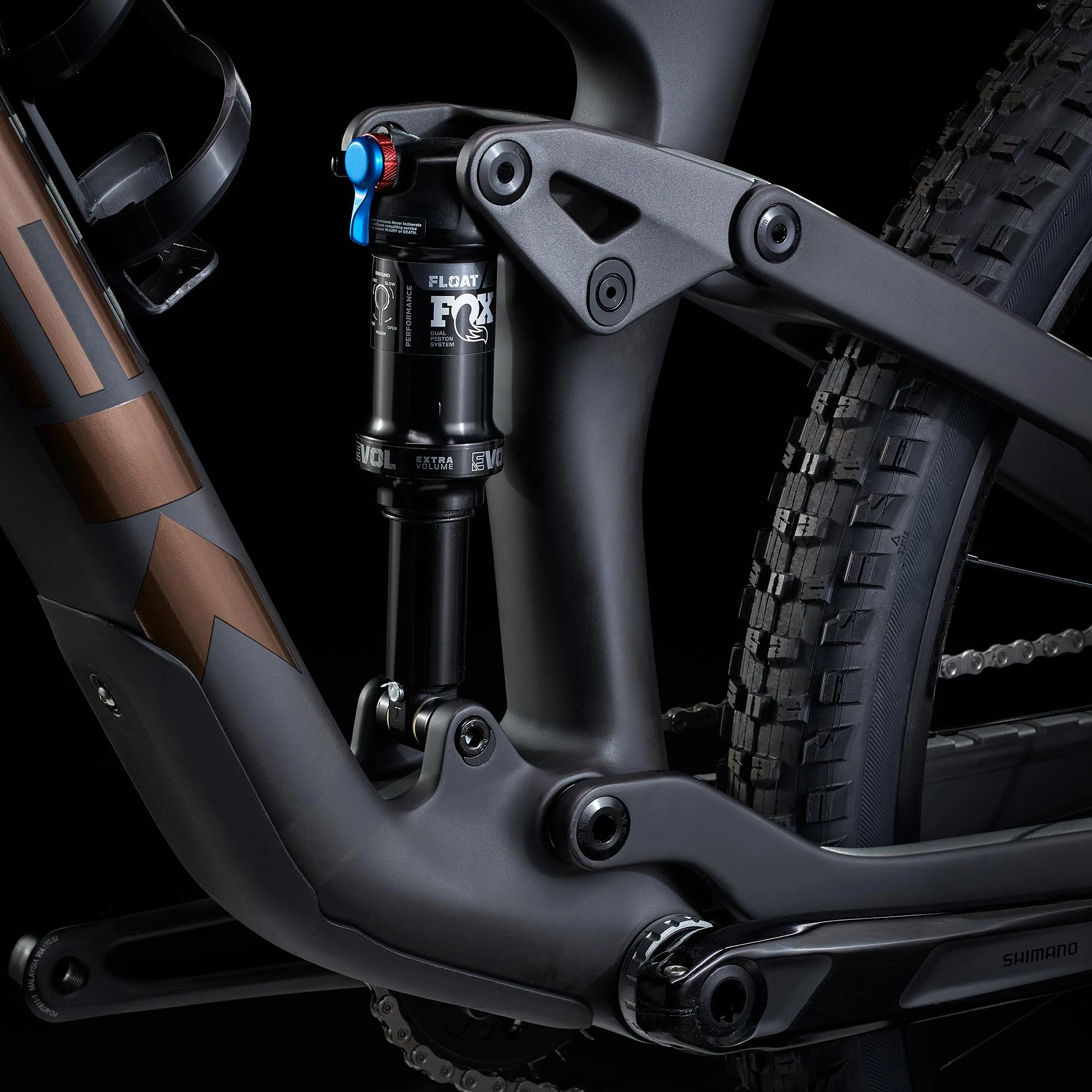

Rear Shock FOX Performance Float DPS, 3-position damper, 185x50 mm, maximum compatible fork travel 130mm (541mm axle-to-crown; XS

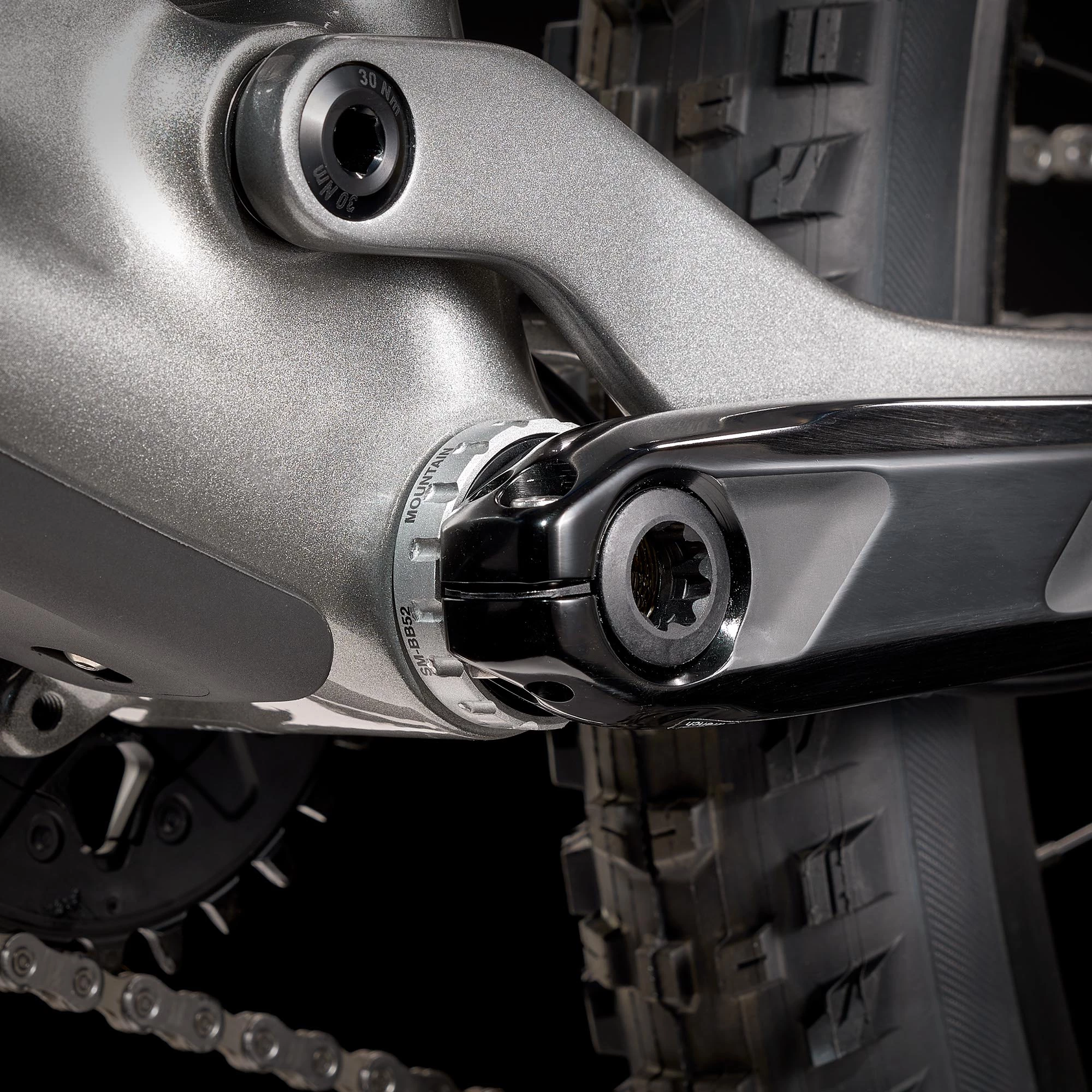

Bottom Bracket Shimano SM-BB52, 73mm, threaded external bearing
Stem Bontrager Elite, 35mm, 0 degree, 45mm length
Handlebar Bontrager Line, alloy, 35mm, 27.5mm rise, width 750mm (XS, S), 780mm (M, M/L, L, XL)
Front Brake Shimano Deore 4-piston hydraulic disc, M6120 calliper, RT66 180mm rotor, 6-Bolt disc
Rear Brake Shimano Deore 4-piston hydraulic disc, M6120 calliper, RT66 180mm rotor, 6-Bolt disc
Brake Levers Shimano M6100 lever

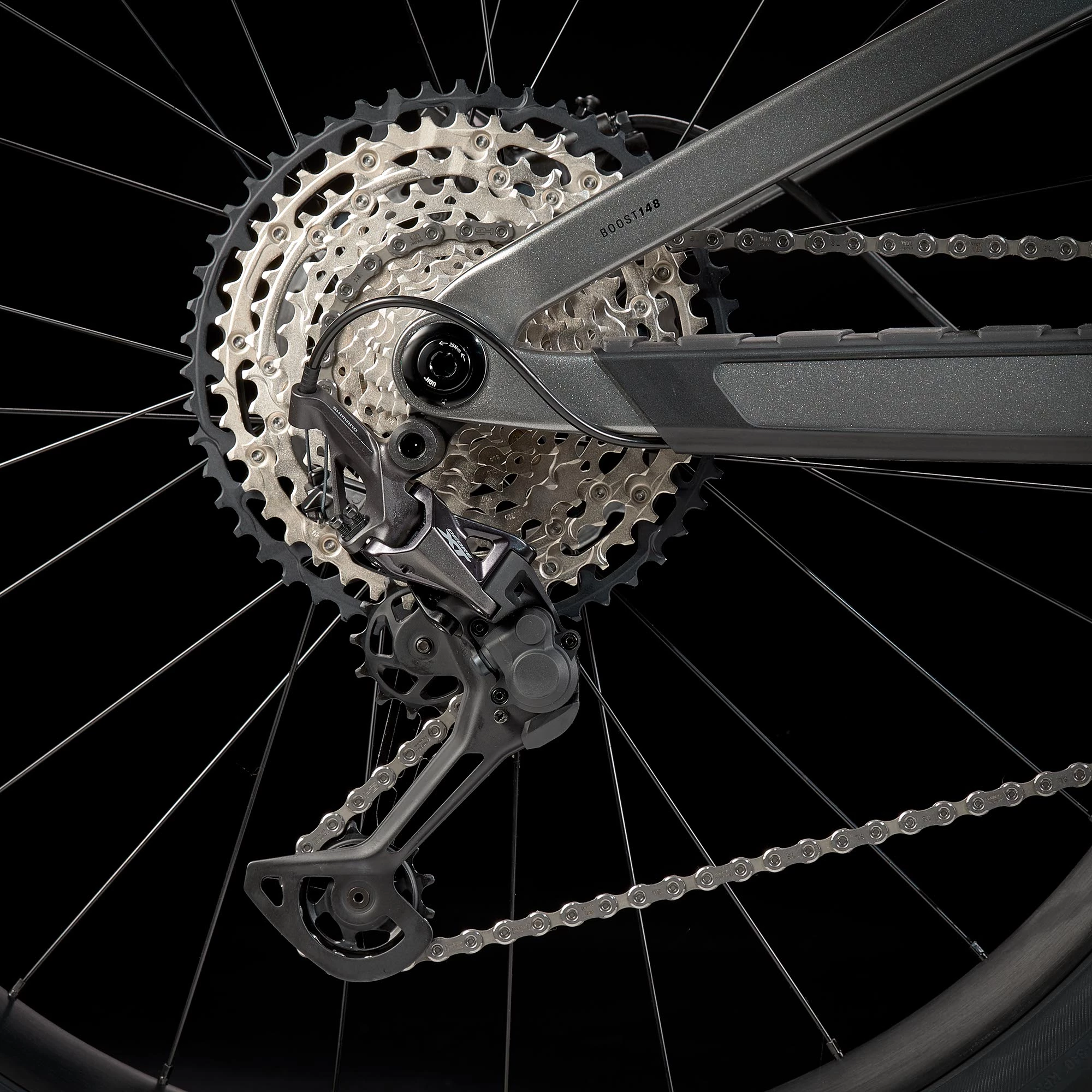

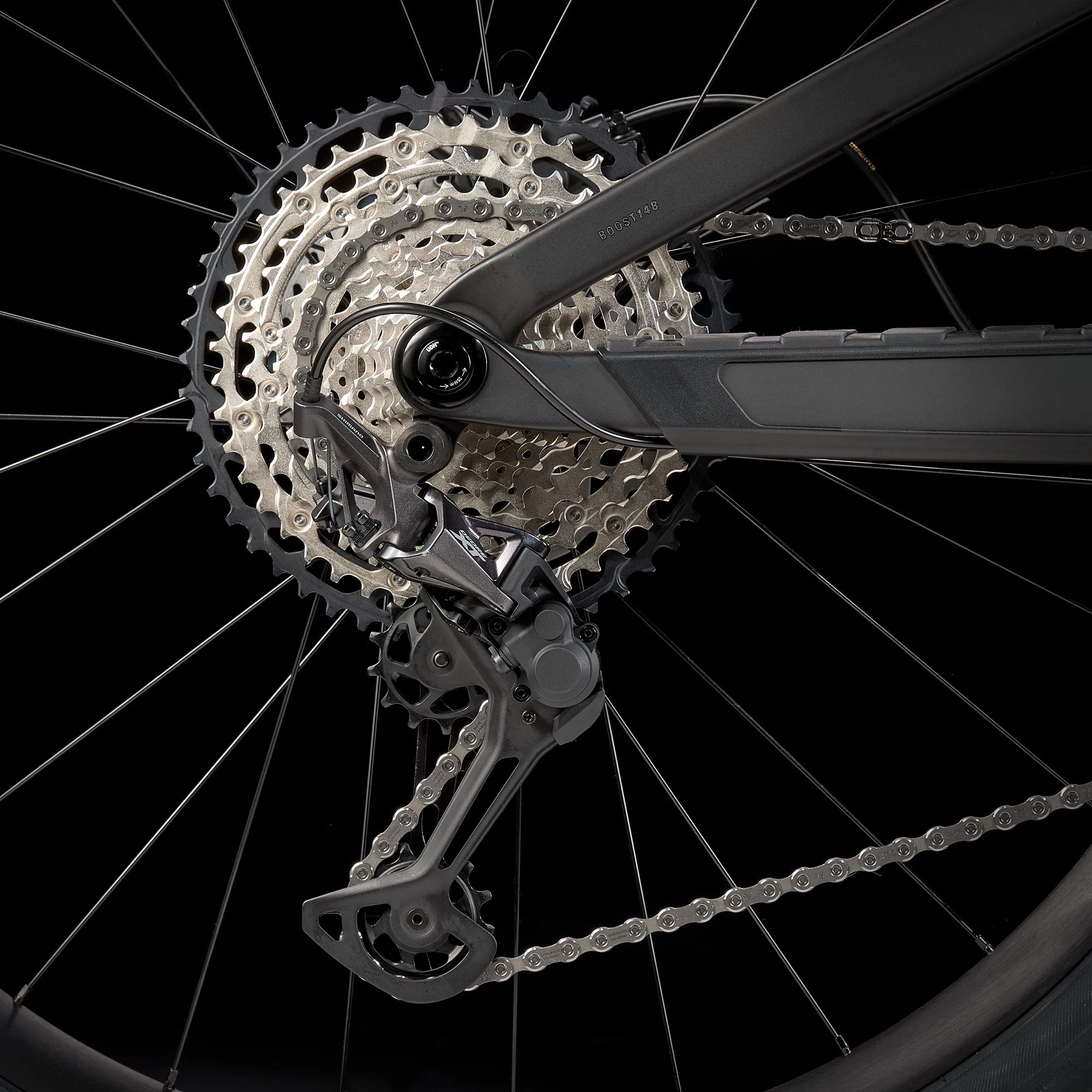

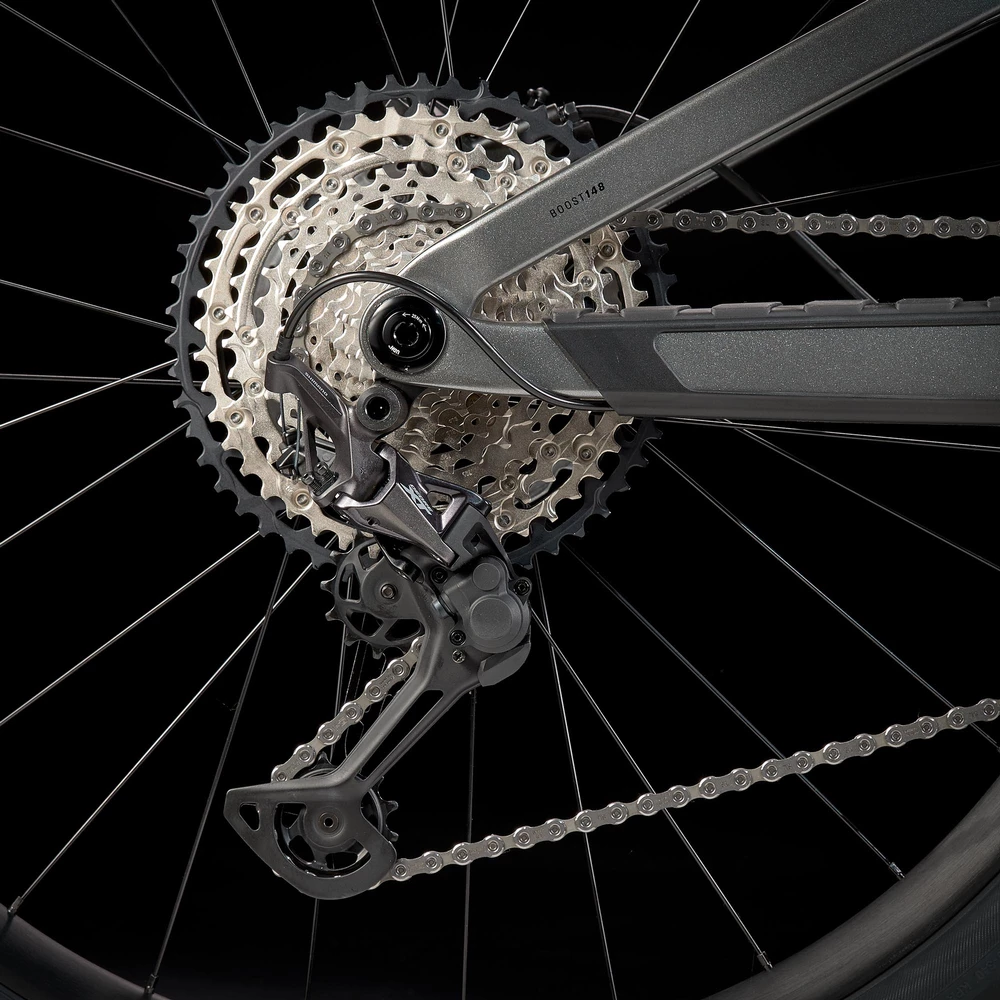

Rear Derailleur Shimano XT M8100, long cage, 51T maximum sprocket
Shift Levers Shimano XT M8100, 12-speed
Cassette Shimano SLX M7100, 10-51T, 12-speed

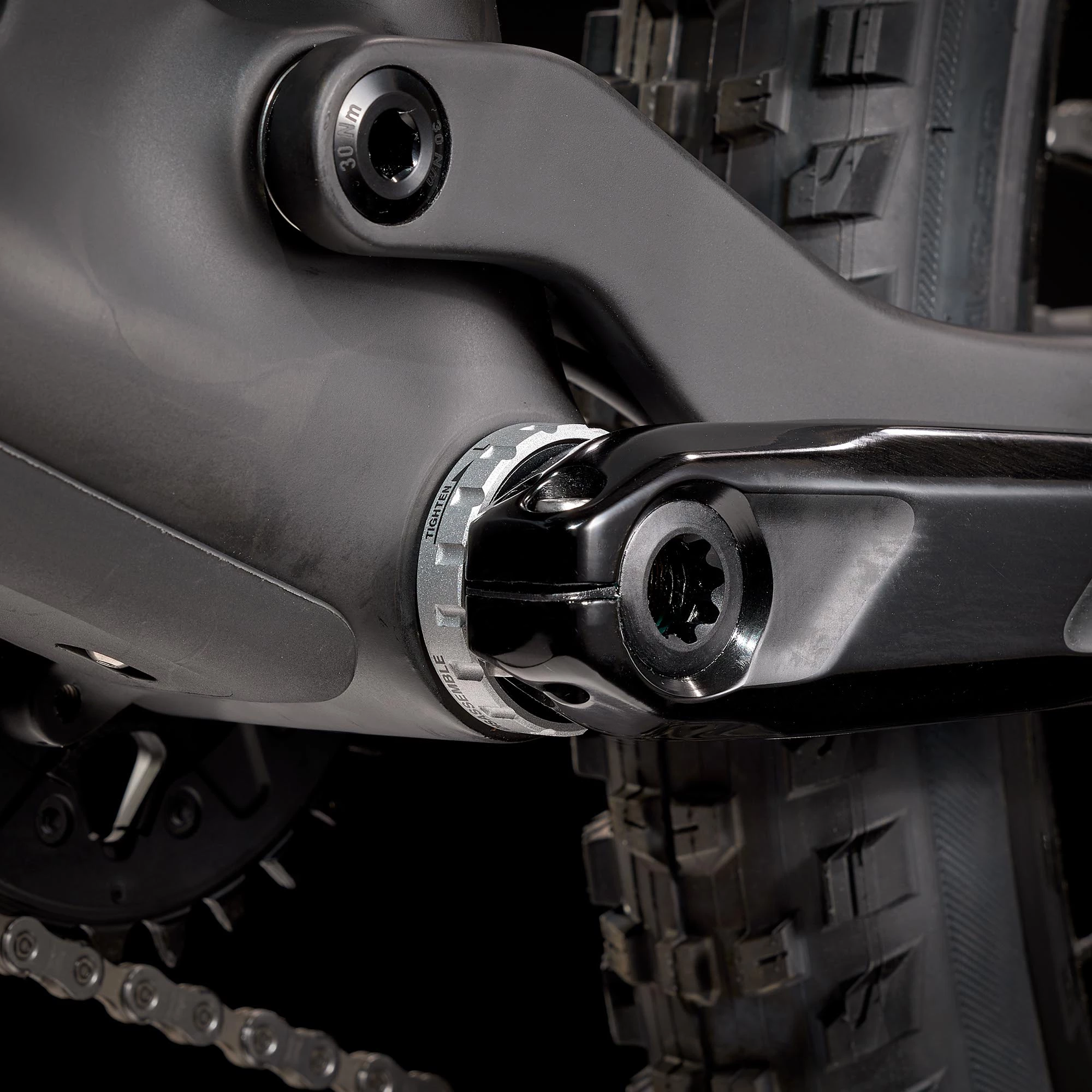

Crankset Shimano Deore M6120, 30T ring, 55mm chainline, length 170mm (XS, S, M, M/L, L), 175mm (XL)
Front Wheel Bontrager Line Comp 30, tubeless-ready, 28-hole, clincher - Hub - Boost 110, Bontrager alloy, sealed bearing, alloy axle, 6-bolt, 15mm thru-axle

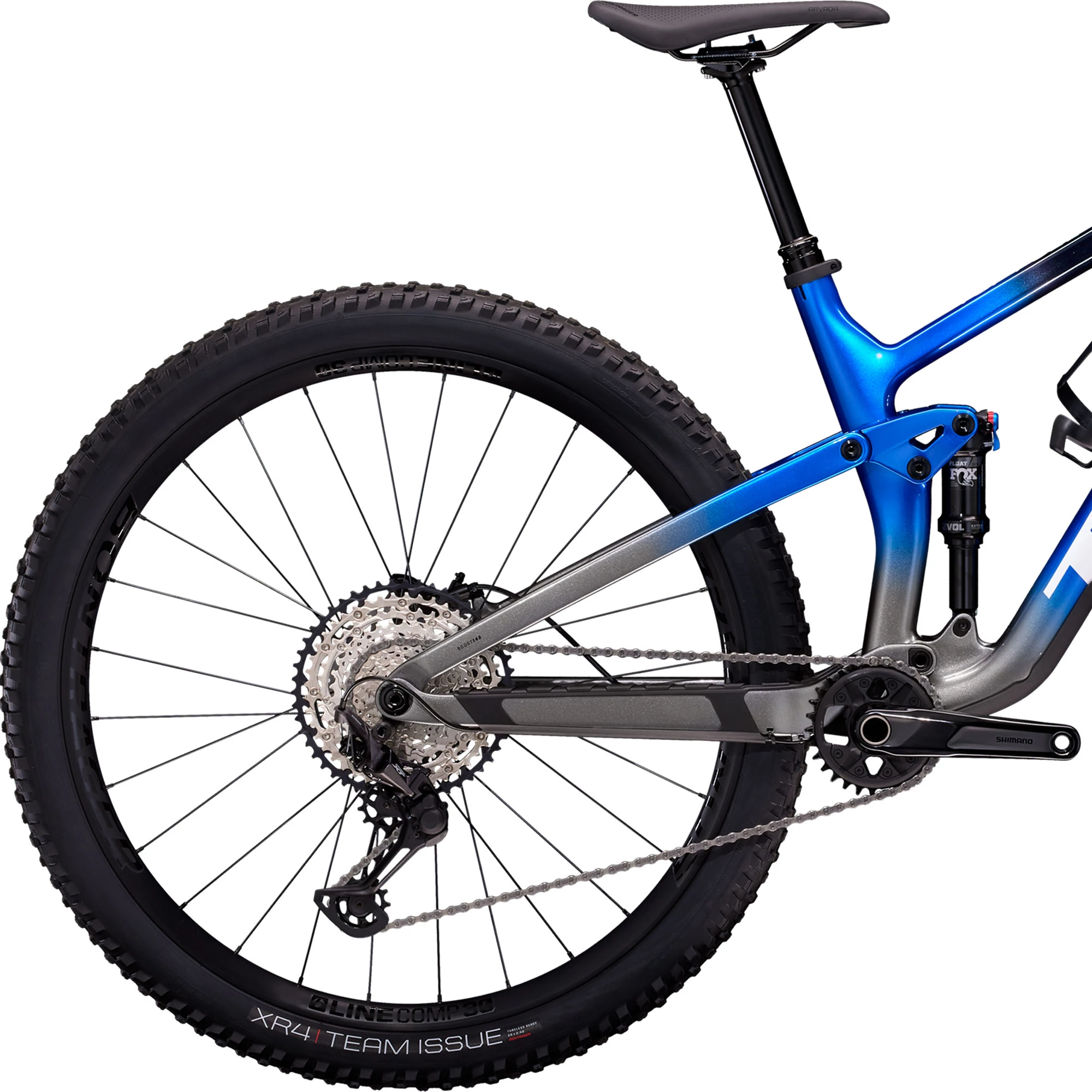

Rear Wheel Bontrager Line Comp 30, tubeless-ready, 28-hole, clincher - Hub - Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru-axle
Front Tyre Bontrager XR4 Team Issue, tubeless-ready, Inner Strength sidewalls, aramid bead, 120TPI, 29"x2.40", tubeless-ready
Rear Tyre Bontrager XR4 Team Issue, tubeless-ready, Inner Strength sidewalls, aramid bead, 120TPI, 29"x2.40", tubeless-ready
Saddle Bontrager Arvada, steel rails, 138mm width
Seatpost TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm
Pedals Available to be purchased separately
Accessories Bontrager BITS internal frame storage bag
Manufacturer’s Claimed Weight 13.14kg / 28.97lbs - (size medium)

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.


Trek Top Fuel 9.7 Mountain Bike 2023 Sizing
