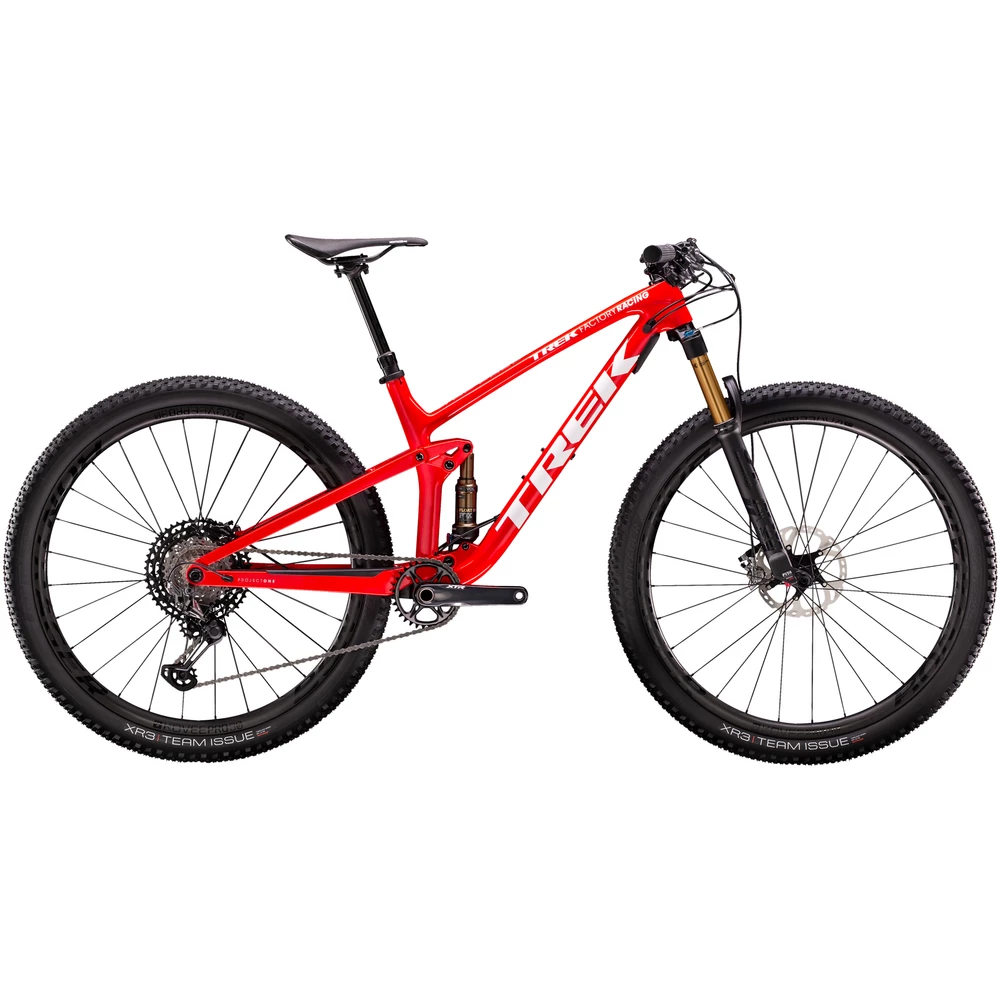

Trek Top Fuel 9.9 XTR Team Edition Mountain Bike 2020
Trek’s Top Fuel 9.9 XTR Team Edition Mountain Bike provides the perfect way to ride or race long distances across varied terrain. The OCLV Mountain Carbon frame offers 115mm of travel from the FOX Factory FLOAT rear shock, with the 2-position DPS damper and Kashima coat ensuring suppleness and durability so that the wheel maintains maximum traction. The FOX Factory 34 Step-Cast fork also benefits from a Kashima Coat, and both shocks can be locked out simultaneously using the TwistLoc remote for efficiency on smoother trails. The frame also features Trek’s variable geometry Mino Link in the rocker and Knock Block frame protection.
The XTR groupset sits at the pinnacle of Shimano’s mechanical range, providing peerless shifting and braking with a light action gear change and precise modulation. The carbon Bontrager Kovee Pro 30 wheels have wide Boost hubs to keep the 29” wheels as well supported as possible, helping them track clear rocks and ruts without deflecting at all. Both the wheels and the Bontrager XR3 Team Issue tyres are tubeless-ready for ease of set up. The dropper seatpost is also from Bontrager and enables the saddle to be dropped or raised as required remotely.
Highlights
- Trek OCLV Mountain Carbon frame with tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link and Boost, 115mm travel
- FOX Factory FLOAT rear shock with 2-position DPS damper, TwistLoc remote and Kashima Coat
- FOX Factory 34 Step-Cast, FLOAT EVOL air spring fork with FIT4 2-position damper, Kashima Coat and 120mm travel
- Shimano XTR M9100 12-speed drivetrain
- Shimano XTR M9100 hydraulic disc brakes
- Bontrager Kovee Pro 30 carbon Tubeless Ready wheels
- Bontrager Line Elite Dropper seatpost
Technical Specification
| Frame | Trek OCLV Mountain Carbon main frame and stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115 mm travel |
| Fork | Fox Factory 34 Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm bolt-on axle, 120mm travel |
| Rear Suspension | Fox Factory Float, 2-position DPS damper, TwistLoc remote, Kashima Coat, tuned by Trek Suspension Lab, 190x45 mm |
| Headset | Knock Block Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Stem | Bontrager Kovee Pro, 35 mm, Knock Block, Blendr-compatible, 13-degree |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 15mm rise |
| Brakes | Shimano XTR M9100 hydraulic disc |
| Brake Levers | Shimano XTR M9100 |
| Rear Derailleur | Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog, 12-speed |
| Shift Levers | Shimano XTR M9100, 12-speed |
| Cassette | Shimano XTR M9100, 10-51, 12 speed |
| Chain | Shimano XTR M9100, 12 speed |
| Crankset | Shimano XTR M9120, 32T |
| Front Wheel | Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost110 |
| Rear Wheel | Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost148 |
| Tyres | Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60" (smaller sizes |
| Saddle | Bontrager Arvada, hollow chromoly rails |
| Seatpost | Bontrager Line Dropper, 150 mm travel, internal routing, 31.6 mm |
| Weight Limit | 136kg (bike, rider and cargo) |
| Manufacturer Claimed Weight | Size M - 11.02 kg / 24.30 lbs (with TLR sealant, no tubes) |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.
Trek Top Fuel 9.9 XTR Team Edition Mountain Bike 2020 Sizing
