Trek Top Fuel 9.9 XX1 AXS Mountain Bike 2021

★★★★★ ★★★★★
(0)
£9,700.00

From only £242.50 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Trek
Top Fuel 9.9 XX1 AXS Mountain Bike 2021

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1298943

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

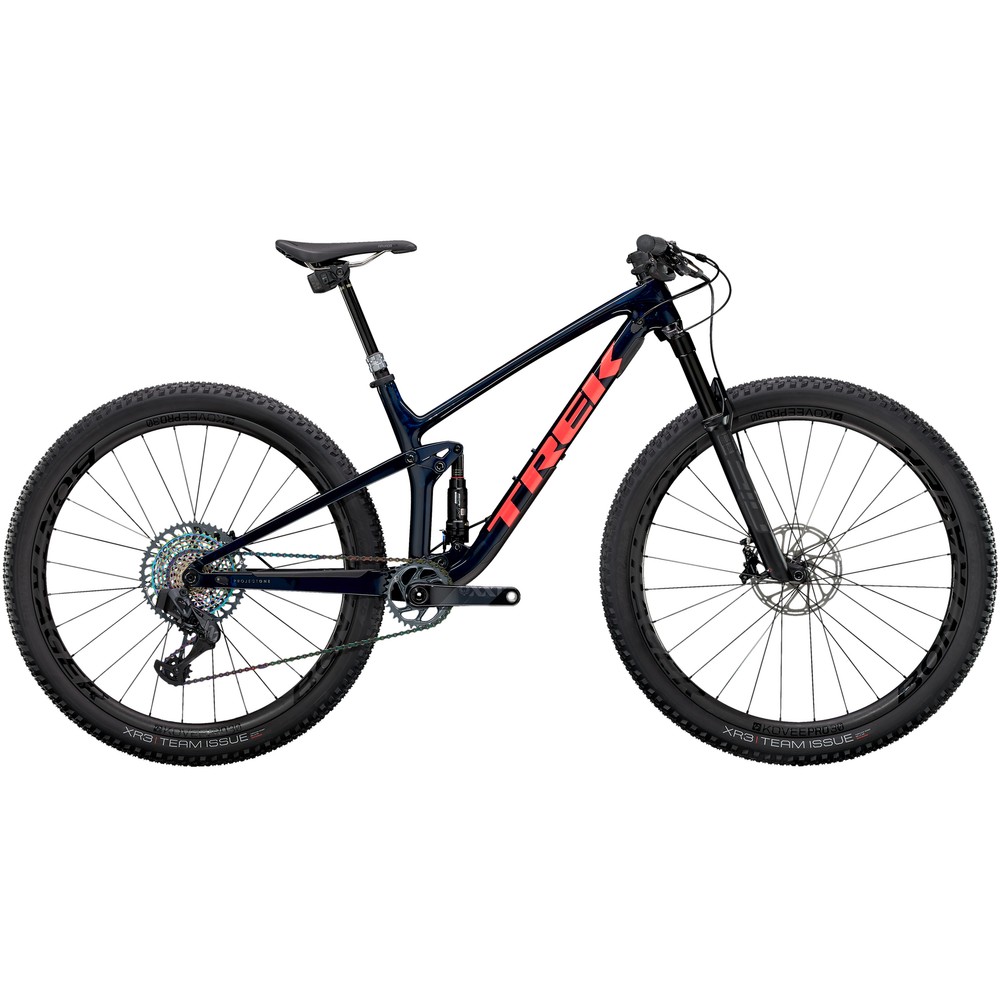

Trek Top Fuel 9.9 XX1 AXS Mountain Bike 2021

Spec'd out with serious components that are race-ready and just eat up rough terrain, the Trek Top Fuel 9.9 XX1 AXS Mountain Bike features a full carbon frame with 115mm of travel, and 120mm of plush RockShox suspension in the fork. This is a bike that delivers both comfort over long distances and confidence when the pace ramps up, thanks to a slacker head tube angle, which also lends greater room for error should concentration begin to wane on long days in the saddle. The Mino Link is a handy addition to this capable bike, enabling the rider to switch between aggressive and responsive geometry, or geometry that's more trail specific with a lowered bottom bracket and slightly slacker head angle.

Get the saddle out of the way quickly thanks to the RockShox Reverb AXS dropper seatpost, ideal when descending or handling sweeping corners, and control this wirelessly through the SRAM AXS system. Shifting is also wireless, snappy, and quiet, with a wide range of gearing options to keep grinding at bay when gradients ramp up. Carbon bars, shift levers and wheels keep weight low, and Bontrager Kovee Pro 30 wheels can be run tubeless to eliminate pinch flats at lower pressures.

Highlights

  • The full carbon frame gives you a light, responsive ride

  • This short-travel trail bike gives you a suspension set-up that’s capable in several MTB disciplines, and especially suited to endurance events

  • Bontrager DropLock's shifter-style lever lets you easily lock out both front and rear shocks at the same time for added sprinting or climbing efficiency

  • Wider Kovee Pro 30 wheels provide better tyre support so you can run lower pressure and get more traction

  • Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride.

  • You get a Straight Shot Downtube for extra-stiff, responsive handling without added weight and a Knock Block headset that protects against spinning bars and fork crowns

Technical Specification

Frame Trek OCLV Mountain Carbon main frame and stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115mm travel
Fork RockShox SID Ultimate, DebonAir spring, Charger 2 RC2 damper, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Rear Shock RockShox SIDLuxe Ultimate, DebonAir spring, Ultimate RL damper, Bontrager DropLock remote, 190x45mm
Headset Trek Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Stem Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree
Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
Grips Bontrager XR Trail Elite, alloy lock-on
Front Brake SRAM G2 Ultimate hydraulic disc
Rear Brake SRAM G2 Ultimate hydraulic disc
Brake Levers SRAM G2 carbon levers
Rear Derailleur SRAM XX1 Eagle AXS
Shift Levers SRAM Eagle AXS, wireless, 12-speed
Chain SRAM XX1 Eagle, 12-speed
Cassette SRAM XG-1299 Eagle, 10-50, 12-speed
Crankset SRAM XX1 Eagle AXS, DUB, 32T alloy ring, Boost
Front Wheel Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost110 front
Rear Wheel Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost148 rear
Front Tyre Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40" clincher
Rear Tyre Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40" clincher
Saddle Bontrager Arvada, austenite rails, 138mm width
Seatpost RockShox Reverb AXS, wireless, 31.6mm
Pedals Available to be purchased separately
Claimed Manufacturers Weight Size M - 11.07kg / 24.40lbs (with TLR sealant, no tubes)

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.


Trek Top Fuel 9.9 XX1 AXS Mountain Bike 2021 Sizing
