Description

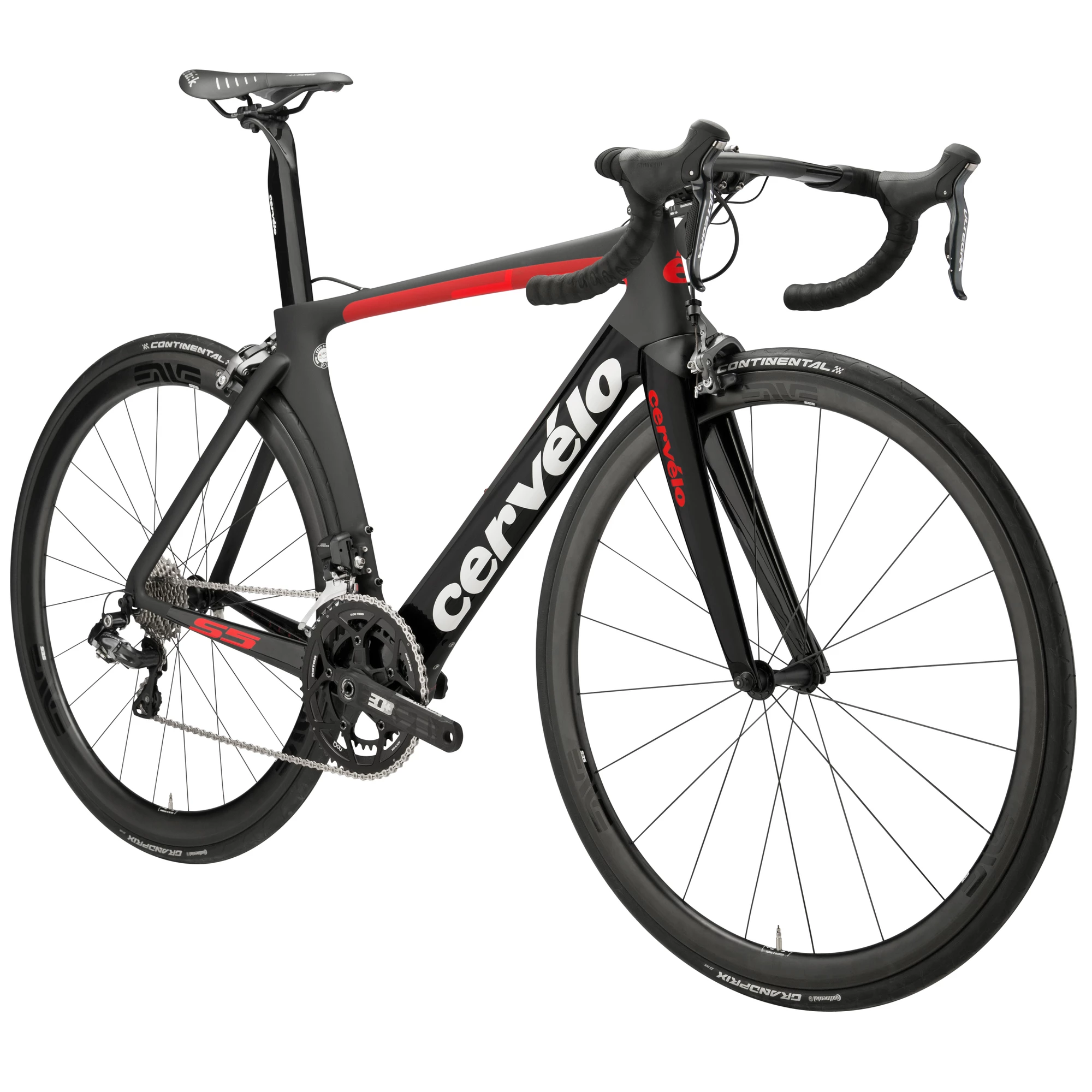

With a 2cm shorter head tube and a reworked carbon lay-up, the Cervelo S5 Ultegra Di2 Road Bike 2017 has a 35% stiffer front end than its predecessor. The S5 is fully focussed on aerodynamic engineering and Cervelo claim a 21.3 watt saving over the previous version. The down tube sits closer to the front wheel and smooth airflow around the rear brake is promoted by the shielded seatstays.
Brake and shifter cables are engineered for enhanced aerodynamics, shifting and braking performance and enter the frame at specific points to reduce drag. The S5 has an airfoil downtube with a flattened trailing edge and the water bottle is partially integrated into the airfoil.
Cervelo use evolved steerer design to select the best fork steerer diameter and taper to ensure weight savings, aerodynamics, stiffness and ride quality.
From a comfort perspective, the cut-out seat tube has undergone some changes so 25mm tyres can be accommodated and vertical compliance is also increased to dampen road vibrations.
The S5 is built up with Shimano 11-speed Ultegra Di2 components for quicker, more precise shifting with very little maintenance making this bike race ready but equally suited to the club or sportive rider. The BBright asymmetrical 79mm bottom bracket contributes to the frame stiffness and the oversized frame tubes further keep the weight down.
Cervelo have moved away from traditional metal dropouts and carbon dropouts result in similar strength but reduced weight and eliminate the chance of any cable friction.
Future-Proof Cable Management ensures compatibility with all electronic and mechanical groupsets and hydraulic brake and derailleur systems. The interchangeable cable stops can be switched out to allow upgrades and no matter the technology upgrades in future years, you can be confident that your bike is upgradeable.
Please note: Image shown for representation of colour way only, specification subject to change at any time. Bicycles do not come with pedals unless otherwise specified.
FRAME | Cervelo S5 all-carbon |
FORK | Cervelo all-carbon, tapered S5 |
HEADSET | FSA IS2 1-1/8 x 1-3/8" |
STEM | FSA OS-99 CSI, size 48/51cm (90mm), size 54/56cm (100mm), size 58/61cm (110mm) |
HANDLEBARS | Cervelo Aero, carbon, size 48/51cm (40cm), size 54/56cm (42cm), size 58/61cm (44cm) |
FRONT BRAKE | Shimano Ultegra 6800 |
REAR BRAKE | Shimano Ultegra 6800 |
BRAKE LEVERS | Shimano Ultegra 6870 Di2 |
FRONT DERAILLEUR | Shimano Ultegra 6870 Di2, 11-speed |
REAR DERAILLEUR | Shimano Ultegra 6870 Di2, 11-speed |
SHIFT LEVERS | Shimano Ultegra 6870 Di2, 11-speed |
CASSETTE | Shimano Ultegra 6800, 11-speed, 11-28t |
CRANKSET | Rotor INpower 3D+, size 48/51cm (170mm), size 54/56cm (172.5mm), size 58/61cm (175mm) |
CHAINRINGS | 52/36t |
FRONT WHEEL | ENVE SES 3.4 Carbon Clincher |
REAR WHEEL | ENVE SES 3.4 Carbon Clincher |
FRONT TYRE | Continental Grand Prix 180 tpi clincher, 700x23c |
REAR TYRE | Continental Grand Prix 180 tpi clincher, 700x23c |
SADDLE | Fizik Antares |
SEATPOST | Cervelo Aero, Carbon (48-51cm Zero Offset / 54-61cm 25mm Offset) |
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
