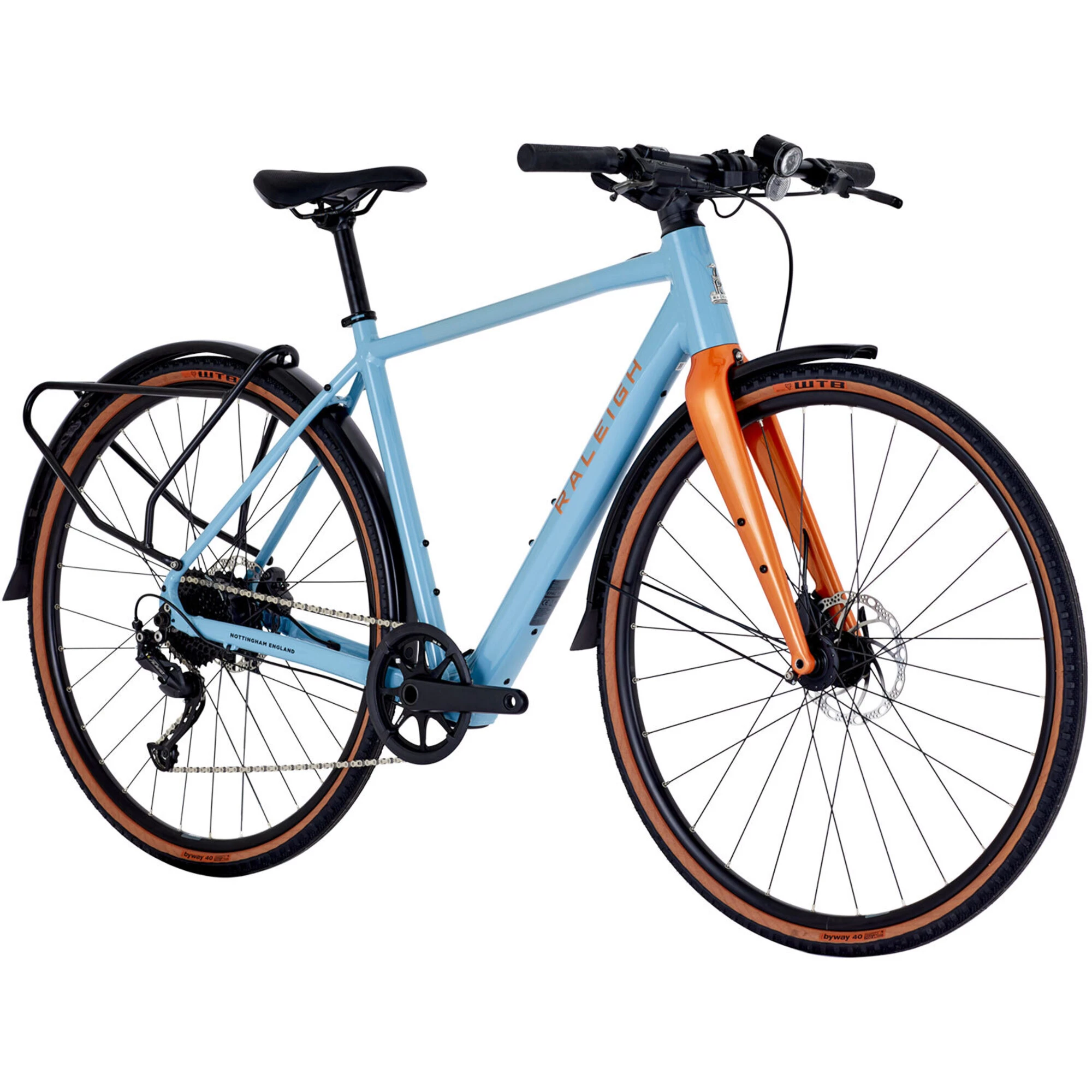

Raleigh Trace Electric Hybrid Bike

You can ditch the car but still get to work sweat-free with the Raleigh Trace Electric Hybrid Bike. Perfect for the daily commute or urban rides, the Trace is packed with features while keeping weight down. An Ebikemotion motor and 250wh battery provide you with a boost for up to 50 miles so that you can ride faster for less effort.

Coming fully equipped, you'll be ready for wet days thanks to the mudguards and dark nights thanks to the included front and rear lights. There's also a rear rack for loading up with pannier bags when you need to carry bigger or heavier loads.

Reliable 9-speed shifting and hydraulic brakes are included, and the bike has a comfy Selle Royal Vivo saddle and offers an upright riding position.


  • 250Wh battery to give your journey a welcome boost
  • 50 mile battery range depending on mode and riding conditions
  • Tektro hydraulic disc brakes
  • Shimano Acera 1x9-speed shifting
  • Fully equipped with lights, pannier rack, mudguards and lights

Battery Specifications


  • Range: Up to 50 miles (depending on usage and riding conditions)
  • Battery Power: 250Wh
  • Battery Charger Type: Ebikemotion X35 2A
  • Battery Charging Time: 4 hours

Technical Specification

Frame Raleigh Trace aluminium 6061, high
Fork Raleigh-approved rigid tapered carbon fork
Stem Raleigh-approved aluminium stem, XS/S - 80mm, M - 90mm, L - 100mm
Handlebar Raleigh-approved aluminium, 640mm
Grips Raleigh-approved XLC Comfort
Front Brake Tektro R280 flat mount hydraulic disc brake, 160mm
Rear Brake Tektro R280 flat mount hydraulic disc brake, 160mm
Brake Levers Raleigh-approved
Rear Derailleur Shimano Alivio 9-speed
Shift Levers Shimano Acera 9-speed Rapidfire
Chain KMC X9 9-speed
Cassette Shimano HG200 9 speed 11-34t
Crankset Raleigh-approved aluminium crank with direct mount chainring and chainguard, 40t, 170mm crank length
Front Wheel Raleigh-approved, 700c double side wall rim with thru-axle aluminium hub, 28H
Rear Wheel Raleigh-approved, 700c doube side wall rim with X35 motor hub, 32H
Front Tyre WTB ByWAY tanwall, 700cx40c, clincher
Rear Tyre WTB ByWAY tanwall, 700cx40c, clincher
Saddle Selle Royal Vivo
Seatpost Raleigh-approved aluminium seatpost 27.2x350mm
Pedals Raleigh-approved
Accessories AXA Compact Line 35 front light / rear light integrated into mudguard / Curana full mudguards / low profile rear carrier
Manufacturer Claimed Weight 16.5kg (size small)
Range 50 miles
Motor Ebikemotion X35 rear hub
Ui/Remote Ebikemotion X35 Top tube HMI iWoc 1 control
Battery Ebikemotion X35 internal battery 250Wh
Electric Assisted Speed Limit 15.5mph / 25kph
