Description

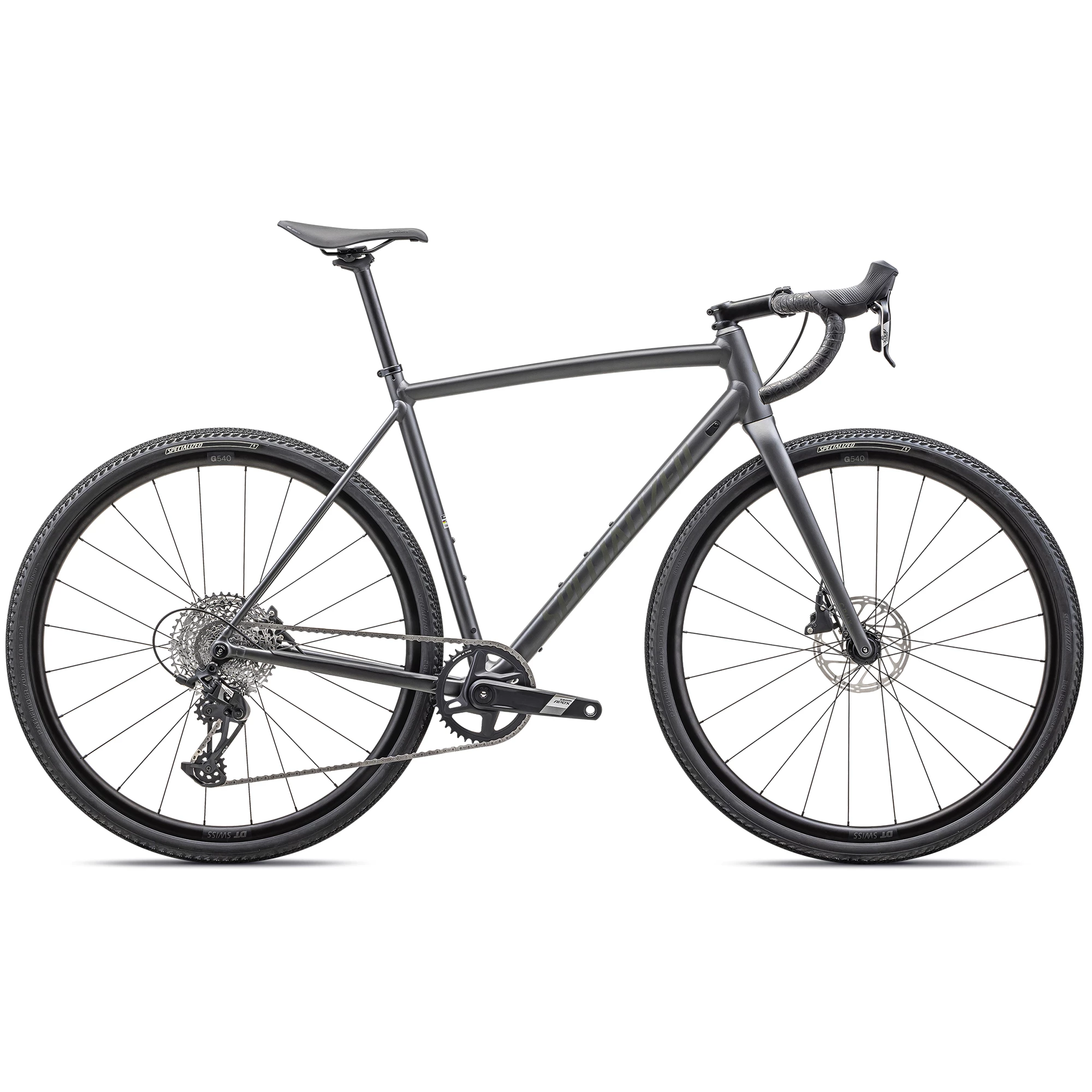

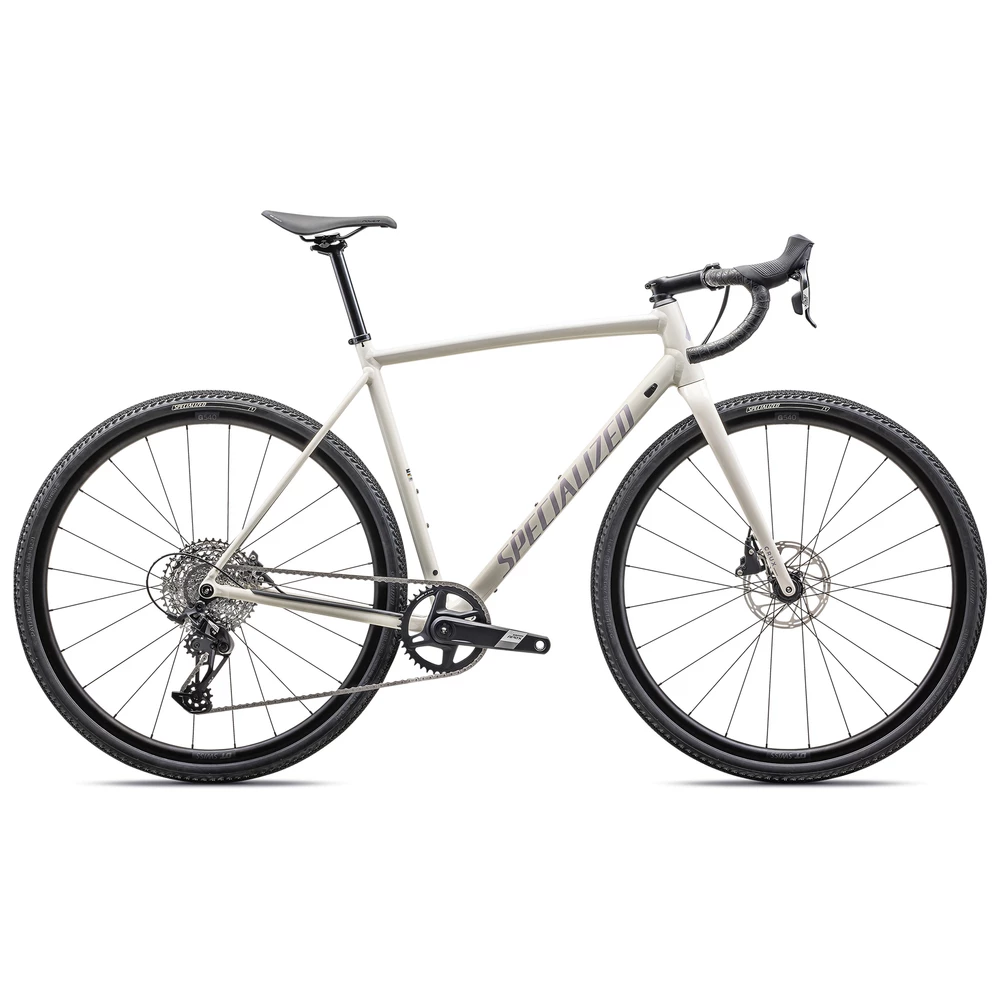

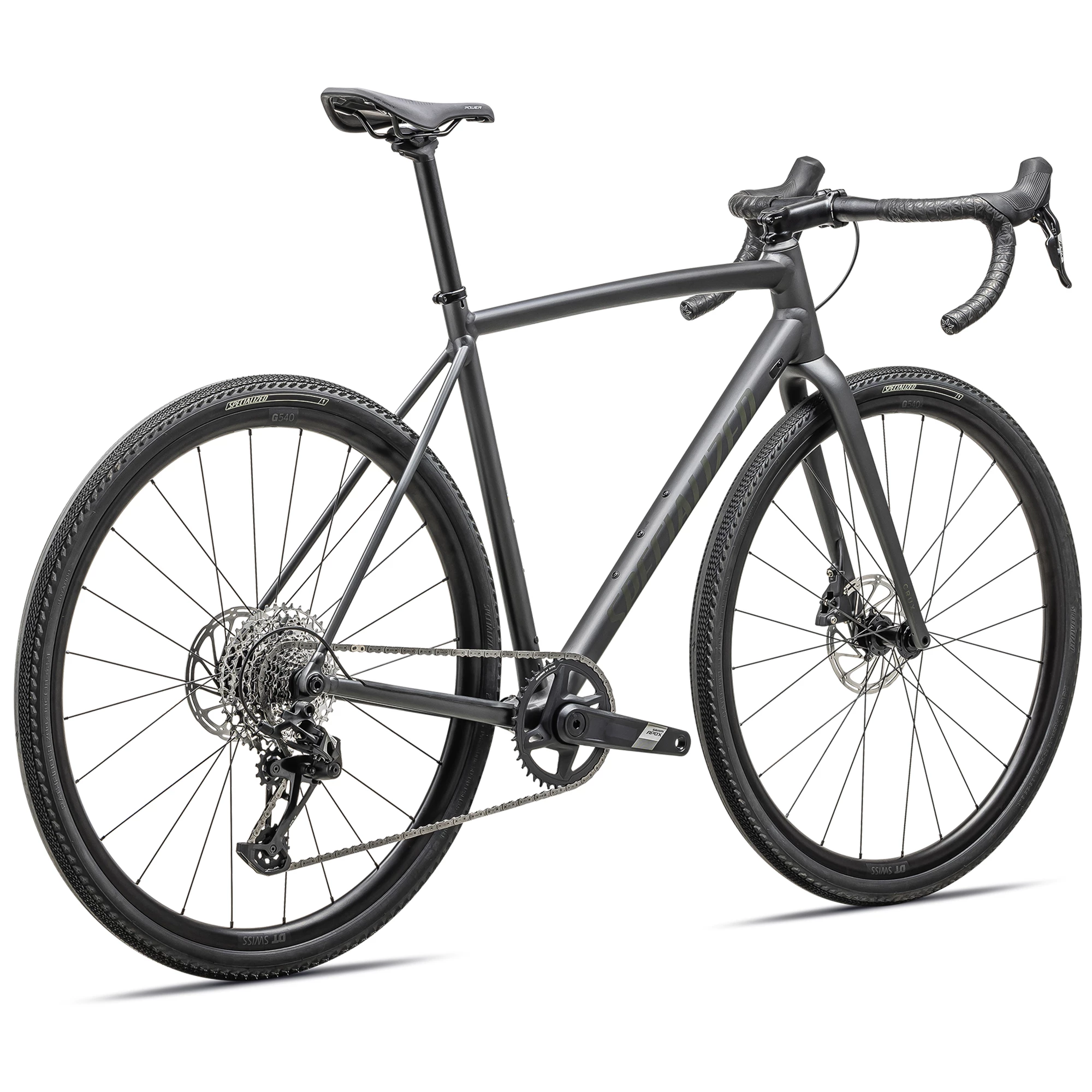

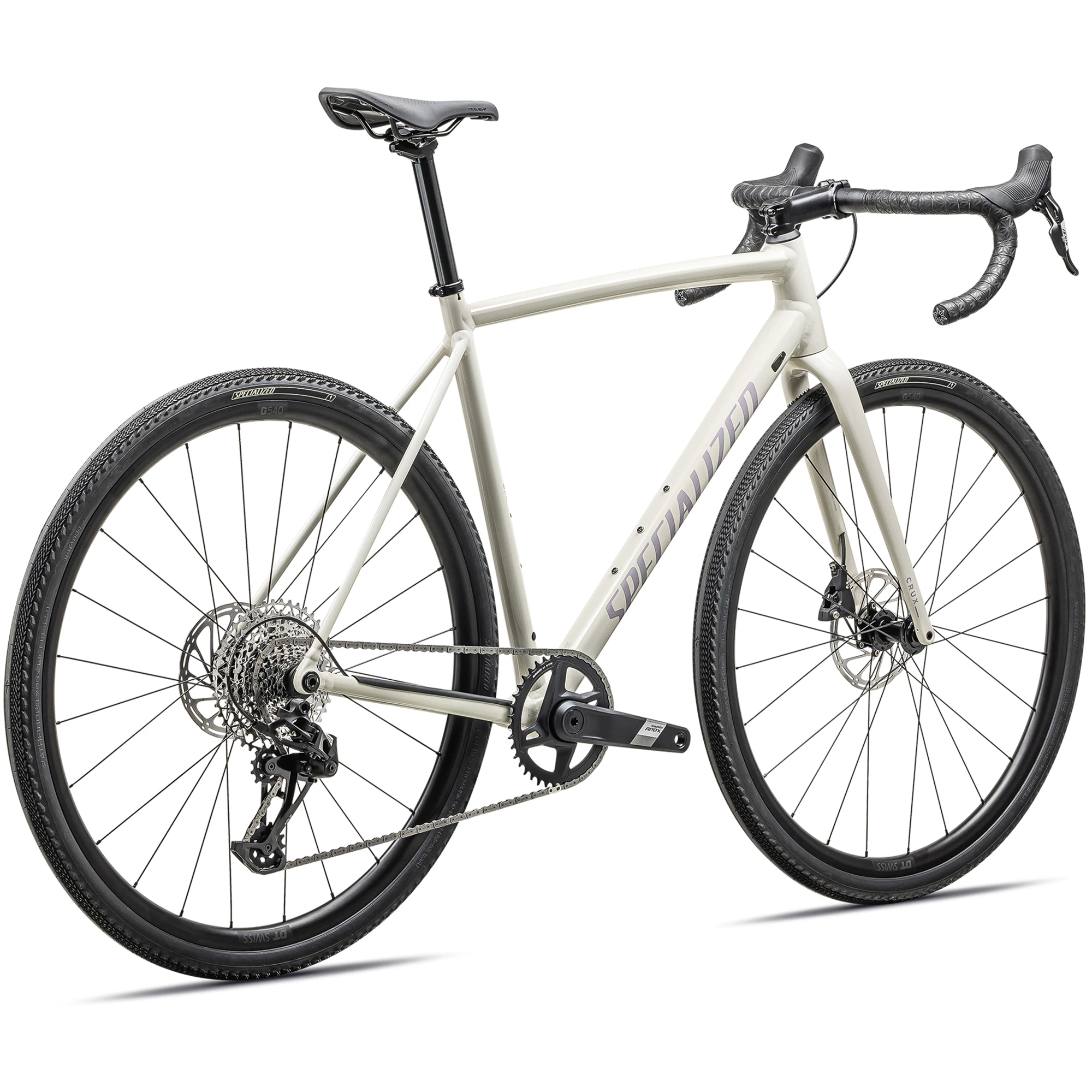

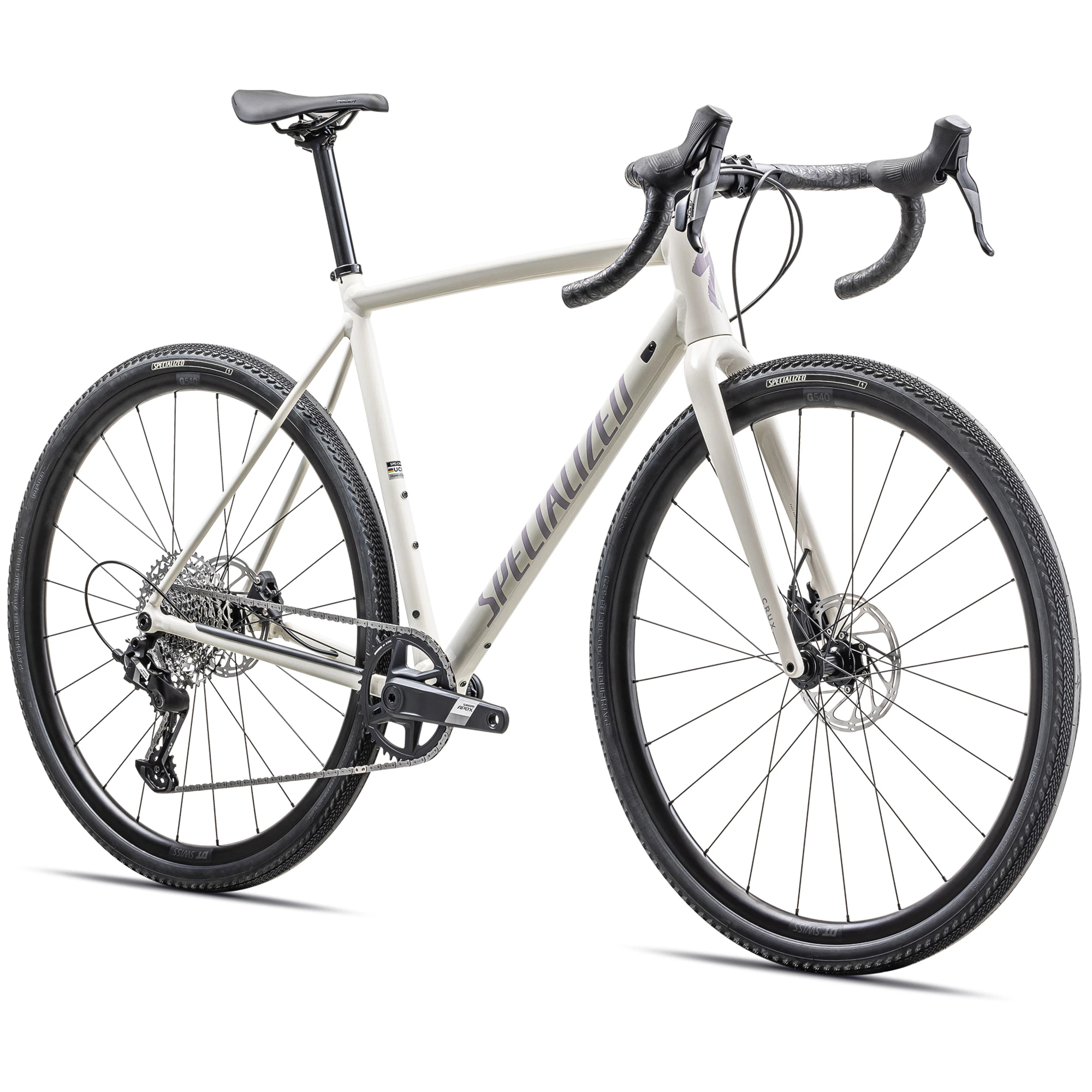

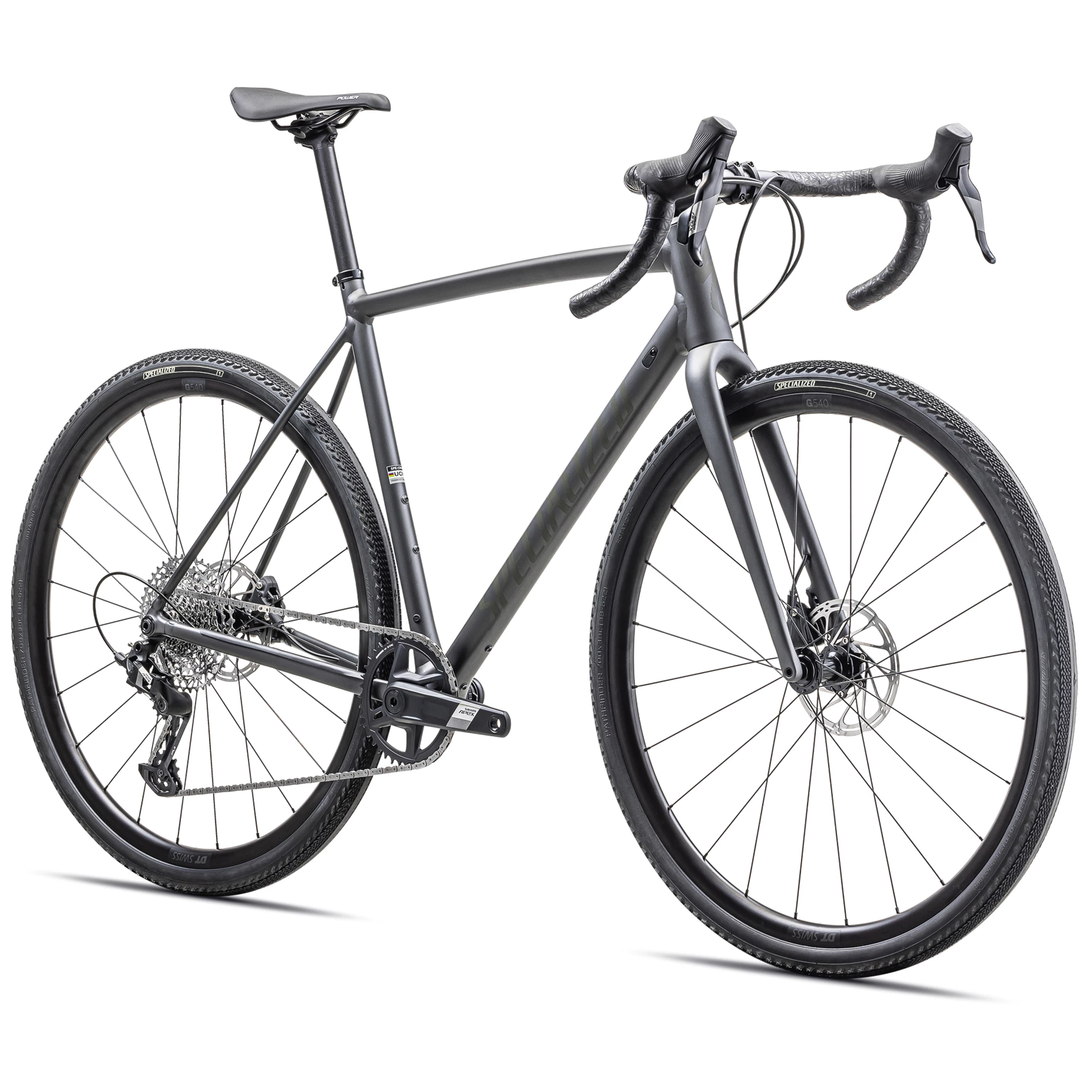

The Crux DSW is more than just the lightest alloy gravel bike ever made. Utilizing our patented D’Aluisio Smartweld, Specialized have applied the innovative design principles from the carbon Crux to create an exceptionally capable, nimble, balanced, and responsive alloy gravel bike. It offers impressive 47c/650b x 2.1” tyre clearance, providing Diverge-level versatility to tackle any terrain. With its performance gravel geometry and race-influenced fit, the Crux DSW is nimble at the pedals and supple in the saddle, making it a high-performance choice for fast and fun rides. Some may call it a carbon copy, but Specialized call it the Crux DSW.
Frame | Specialized E5 Premium Aluminum Disc frame with D'Aluisio Smartweld Technology, hydroformed aluminum tubing, tapered head tube, threaded BB |
Fork | FACT Carbon, 12x100mm thru-axle, flat-mount disc |

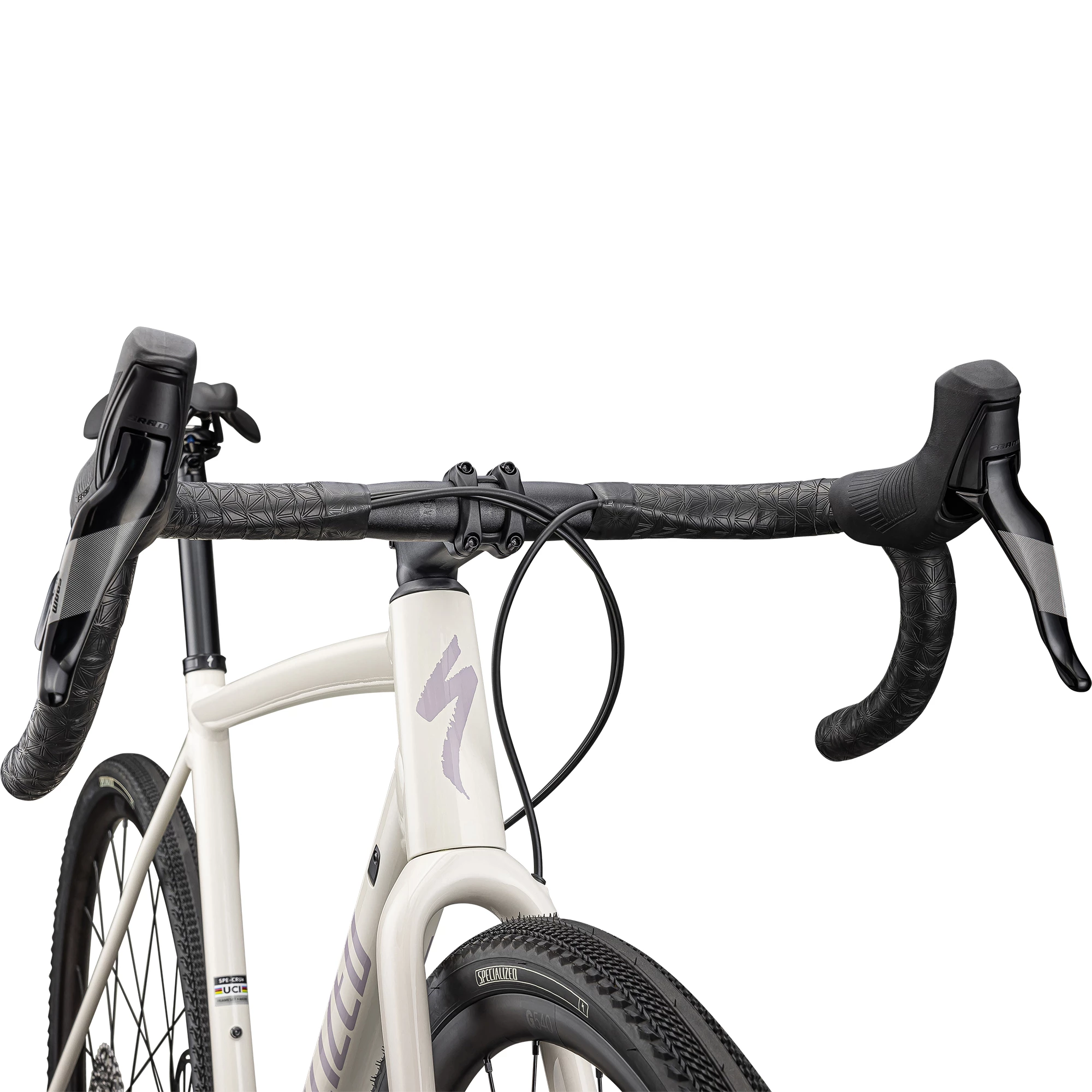

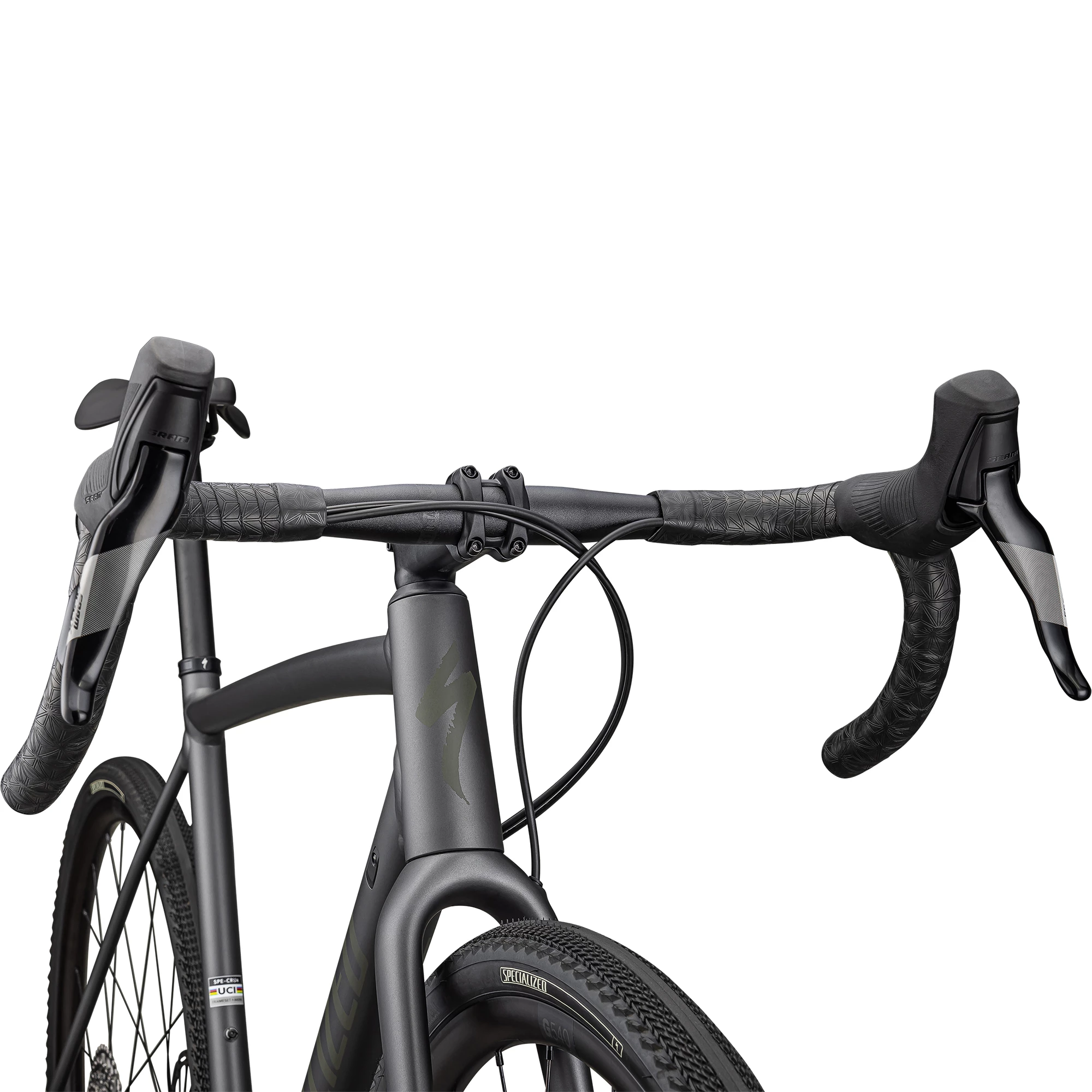

Handlebars | Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare |
Stem | Specialized, 3D-forged alloy, 4-bolt, 7-degree rise |
Tape | Supacaz Super Sticky Kush |
Front Brake | SRAM APEX, Hydraulic Disc |
Rear Brake | SRAM APEX, Hydraulic Disc |
Shift Levers | SRAM APEX, 12sp |
Rear Derailleur | SRAM APEX XPLR, Mechanical |
Cassette | SRAM PG 1231, XPLR, 11-44 |
Crankset | SRAM APEX XPLR, 40t |
Chainrings | 40t |
Bottom Bracket | SRAM DUB BSA 68 Wide |
Chain | SRAM APEX 12S |
Front Wheel | DT G540, Centerlock Disc, Tubeless Ready, 25mm internal width |
Rear Wheel | DT G540, Centerlock Disc, Tubeless Ready, 25mm internal width |
Front Tyre | Pathfinder Pro 2BR, 700x38 |
Saddle | Body Geometry Power Sport, steel rails |
Rear Tyre | Pathfinder Pro 2BR, 700x38 |
Seatpost | Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware |
Inner Tubes | 48mm Presta Valve, 700X28-38 |
Seat Binder | Specialized Alloy, 30.8mm |
Weight | 9.37kg (20 lb, 10.5 oz) |
Weight Size | 56 |
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
