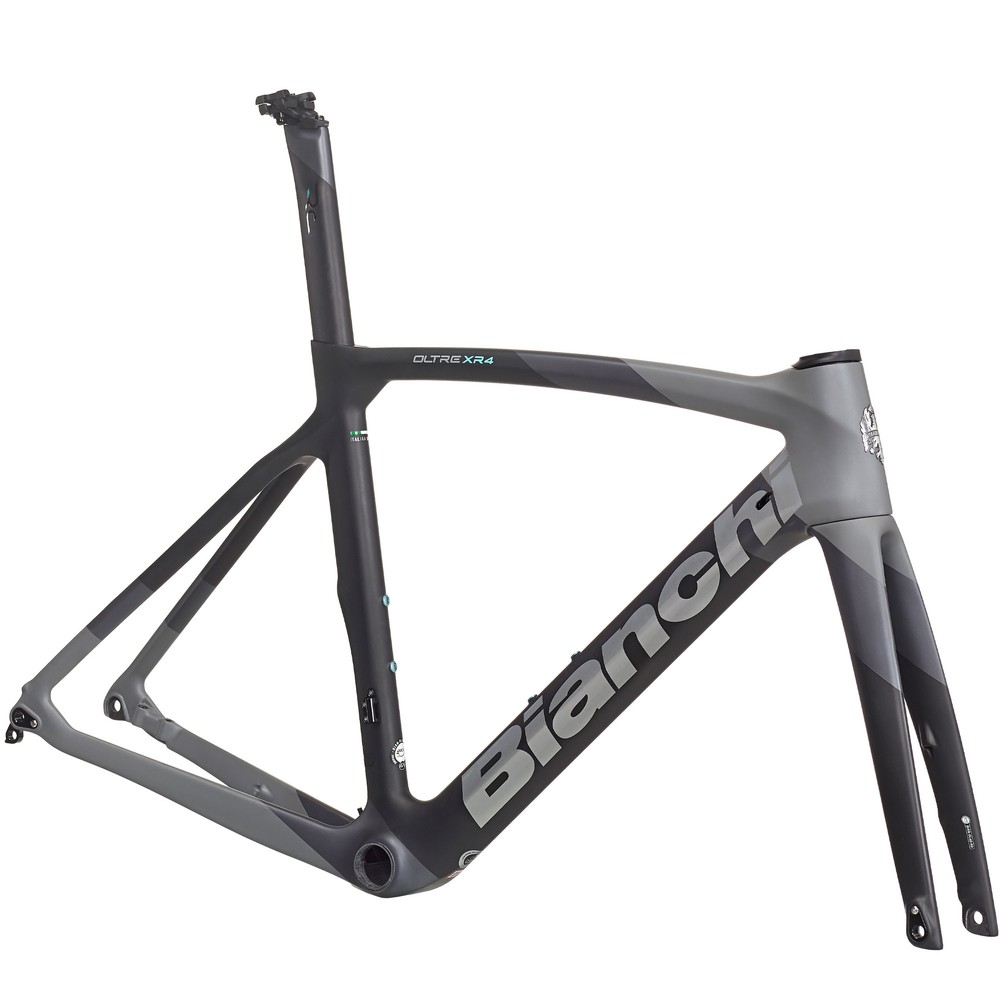

Bianchi Oltre XR4 CV Integrated Handlebar/Stem Disc Frameset 2022

$‌6,315.00

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1464184

Description

Bianchi Oltre XR4 Integrated Handlebar/Stem Disc Frameset 2022

Engineered to perform, the Bianchi Oltre XR4 Integrated Handlebar/Stem Disc Frameset combines a stiff construction with Bianchi CV (Countervail) technology for improved control. Exceptional power transfer means all your watts are transferred through the pedals, and the carbon frame and fork deliver precision handling and a lively ride. CV vibration-cancelling technology reduces the effects of harsh roads by 80%, resulting in less fatigue through the body.

The sleek design of this bike, with aero tube shapes, an aero seatpost and a Metron 5D ACR integrated bar and stem which fully encloses cables, creates a drag-reducing shape. Stopping power is maximised by disc brakes for all-weather reliability. There's room for wider tyres, offering more versatility, and the stem, handlebar and seatpost are all frame size-specific for a dialled in feel.

Highlights

  • Bianchi CV (Countervail) technology cancels 80% of road vibrations for improved control and reduced fatigue
  • Aero seatpost with an integrated look and adjustable head clamp; offset 25mm or -10mm
  • Metron 5D ACR bar and stem gives the Oltre XR4 a cleaner, more aero front end for added speed and efficiency
  • Designed for disc brakes
  • Generous clearance for wider tyres

Technical Specification

Frame Bianchi Oltre XR4 Disc carbon with Bianchi CV, mechanical/electronic shifting compatible, headset 1.5", PressFit BB 86.5x41mm, Disc brake internal cable routing, flat mount, thru-axle 12x142mm
Fork Bianchi full carbon with Bianchi CV, disc, thru-axle 12x100mm
Headset FSA Orbit custom 5D ACR top cover, UD carbon, lower 1.5"- top 1 .5", 36°- 45° ACB bearing, with carbon custom cone spacer specific for Metron disc integrated handlebar, for 52mm/52mm OD head tube
Stem/Handlebar Reparto Corse Metron 5D ACR Disc Integrated Aero bar, bar/stem integrated, material UD weave carbon, drop 125mm, reach 80mm, Di2 compatible, RC'21 graphics, stem length/handlebar width - 100x400mm (47/50cm) / 110x420mm (53/55cm) / 120x420mm (57/59cm) / 130x440mm (62cm)
Seatpost Bianchi Reparto Corse Full Carbon Aero special dimension, special clamp type with alloy head adjustable and reversible +/- 35mm, length - 250mm (47cm) / 300mm (50/53cm) / 350mm (55/59cm) / 380 (61cm) / setback - 25mm/+10mm
