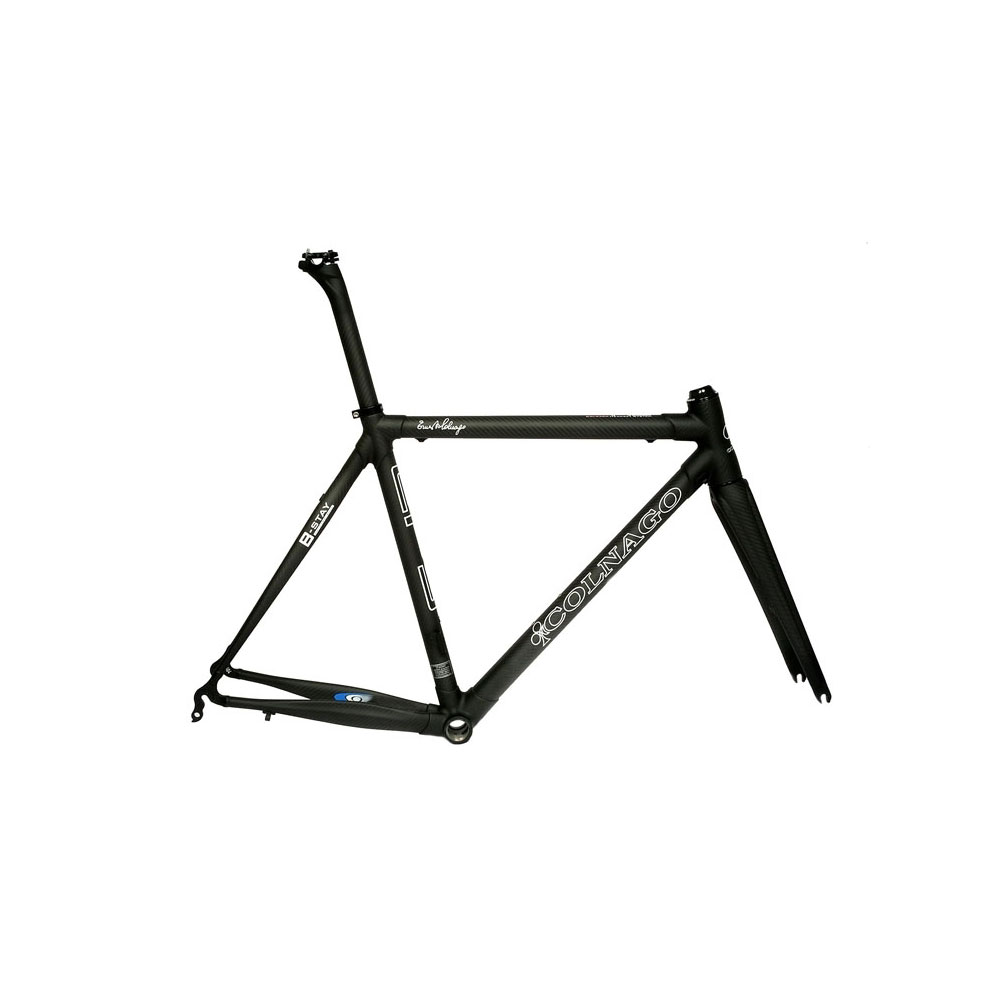

Colnago EPS Frameset (sloping) 2011

Colnago EPS Frameset (sloping) 2011

The EPS sits just below the C59 in Colnago's range for 2011 and is an Italian-made, carbon fibre lugged beauty. The frame is constructed from a blend of ultra-high and high modulus unidirectional composite finished with a 3K twill. The down tube has a variable (40mm/35mm) conical shape with internal re-inforcement ribs along its surface to improve the frame's resistance to the stresses encountered under effort . The rear triangle features the tried and tested B-stay and (foglia) leaf shape chain stays providing that fine balance of punchy acceleration combined with the ability to stay composed on poor quality road surfaces.

Frame: Lugged carbon fibre main triangle in a 3K weave. B-stay seat stays and leaf-shaped chainstays.

Fork: EPS fork and C-HS1 integrated headset.

Groupset: Supplied as a frame and fork only. Requires a 31.6mm seatpost. A Colnago branded option can be painted to match your chosen colour scheme for an additional charge.

Sizing

• Size: 52cm
• Seat Tube (C-T): 520
• Seat Tube (C-C): 500
• Top Tube Length: 530
• Head Tube Length: 125
• Chain Stay Length: 402
• Seat Tube Angle: 74.57
• Wheel Size: 700c
