Focus Sam2 6.8 Electric Mountain Bike 2022


Select a colour and size to view stock availability

Sam2 6.8 Electric Mountain Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1317778

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

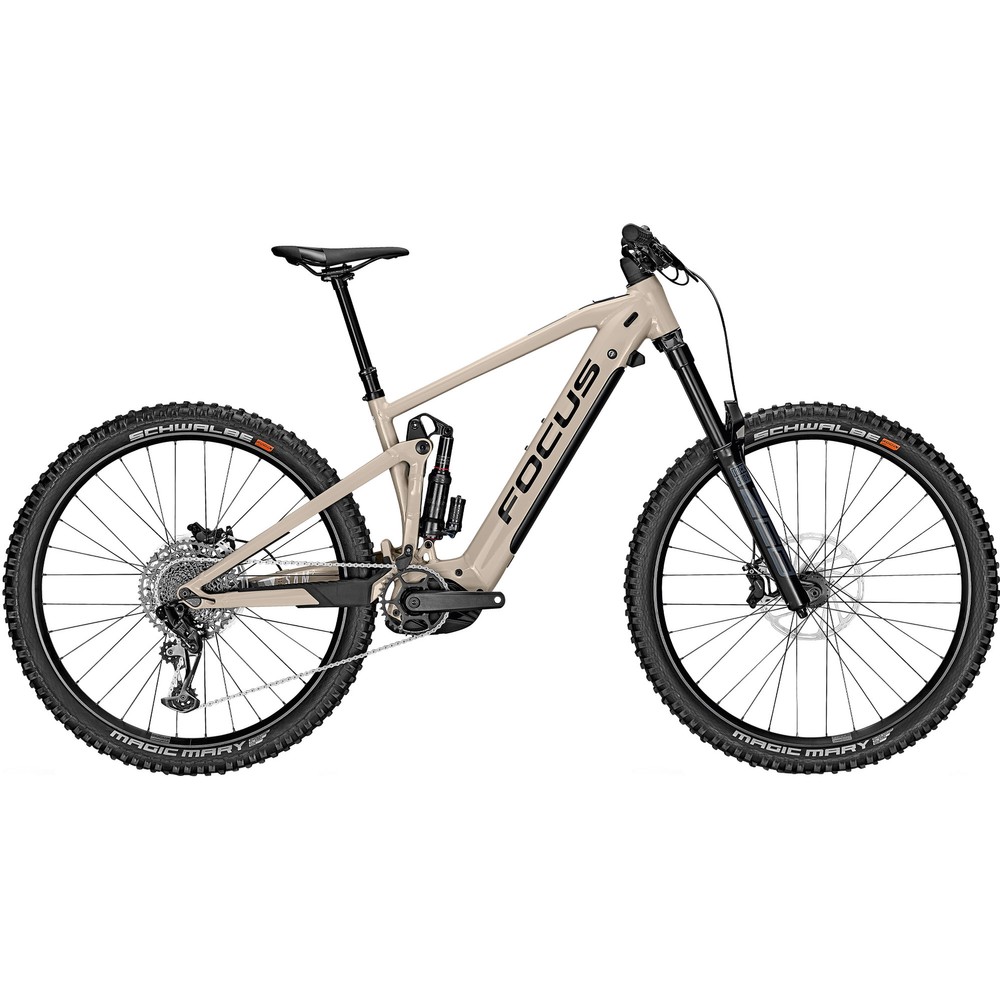

Focus Sam2 6.8 Electric Mountain Bike 2022

Designed for the most demanding of descents, the Focus Sam2 6.8 Electric Mountain Bike is ready to take on your next gravity fuelled challenge. More power means more laps - Bosch’s 625wh Powertube battery provides hours of playtime, a self-uplift perfect for winching you to the top of the next run. Featuring Bosch’s most powerful motor, the fourth generation performance CX provides assistance up to a maximum speed of 15.5 mph / 25 km/h, the Sam2 feels agile and nimble despite its long travel. It feels at home anywhere from the Alps to your local woods, instilling endless confidence no matter the terrain, excelling on more intimidating trails where traditional geometry is out of its depth.

Through the use of Focus’ electric mountain bike specific F.O.L.D kinematics, the Sam2 boasts 170mm of travel that is supple on the small hits but progressive enough to take your chances off the next lip. For 2021, Rock Shox’s all-new ZEB fork can be found specced on the 6.8. Featuring a wider 38mm stanchion platform, the ZEB is a premium enduro/freeride fork, designed to help the front wheel track better during impacts - perfect for aggressive electric mountain bikes like the Sam2. 29-inch wheels allow for incredible stability on rough terrain, holding speed through ruts and over rocks.

Fans of 27.5" wheels should not fear, by switching the orientation of the flip-chip you have the option to ride the smaller wheels if required. This reduces the chainstays to a super-short 430mm, shortening the wheelbase and providing a more nimble ride character. SRAM starts and stops the Sam2 with its GX Eagle 12-speed drivetrain and Code R respectively, with the powerful four piston brakes providing ample stopping power on even the steepest of runs.

Browse our range of Focus electric mountain bikes today.


  • 170mm travel frame with electric mountain bike specific F.O.L.D kinematics
  • Powerful Bosch Performance CX Gen4, 75 Nm, 250W motor
  • High capacity Bosch Powertube 625wh battery
  • Rock Shox ZEB 170mm, 38mm stanchion fork
  • Downhill orientated SRAM Code R four piston brakes
  • Rock Shox Super Deluxe Select+ shock

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 2.9kg
  • Battery Power: 625Wh battery capacity


  • Charger

Technical Specification

Frame Focus 7005 hydroformed aluminium, 3D forging, 170mm F.O.L.D. kinematic, 148x12mm thru-axle, internal cable routing, post mount 203mm
Fork Rock Shox ZEB 29 Boost, Charger R, DebonAir, 110x15mm, 44mm rake, 170mm travel
Rear Shock Rock Shox Super Deluxe Select+, 230/65mm, hardware 25.0x8mm
Headset Acros AZX-212 AH [1-1/8", tapered, 44/286-ZS56/40]
Stem Focus C.I.S. integrated, 50mm, 0 degrees, 35mm, aluminium
Handlebar Focus Trail, aluminium, riser bar, 780mm, rise 30mm, backsweep 9 degrees
Front Brake SRAM Code R, four-piston
Rear Brake SRAM Code R, four-piston
Brake Levers SRAM Code R
Rear Derailleur SRAM GX Eagle, 12-speed
Shift Levers SRAM GX Eagle, 12-speed
Chain Shimano SLX CN-M7100
Cassette Shimano SLX M7100, 12-speed 10-51t
Crankset Samox EC40 ISIS, 34t
Front Wheel Rim - 29" RODI TRYP30 Focus / Hub - Novatec D041 hub, 15x110mm
Rear Wheel Rim - 29" RODI TRYP30 Focus / Hub - Novatec D041 hub, 12x148mm
Front Tyre Schwalbe Magic Mary 2.6 Super Trail Soft, clincher
Rear Tyre Schwalbe Magic Mary 2.6 Super Gravity Soft, clincher
Saddle Prologo Proxim W350
Seatpost Kind Shock RAGE, 31.6mm
Pedals Available to be purchased separately
Motor Bosch Performance CX Gen4, 75Nm, 250W
Ui/Remote Bosch Purion
Battery Bosch Powertube, 625wh
Manufacturer Claimed Weight 25.95kg (size 42cm) (battery included)
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.

Focus Sam2 6.8 Electric Mountain Bike 2022 Sizing
