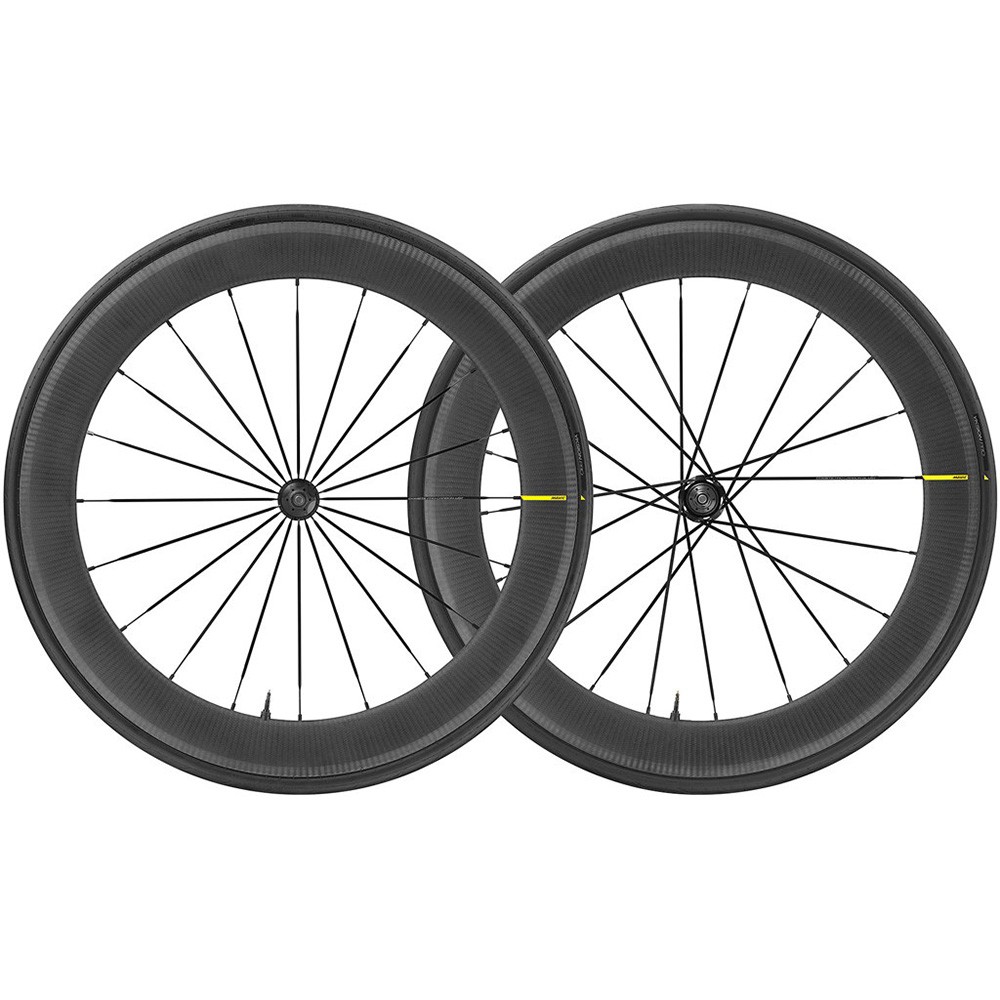

Mavic Ellipse Pro Carbon Track Wheelset

£1,800.00

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1321180

Description

Mavic Ellipse Pro Carbon Track Wheelset

The Ellipse Pro Carbon has evolved from Mavic’s vast experience with track wheelsets to be their stiffest, lightest and most robust option for intense fixed gear track or crit racing.

The rims are realised in a sophisticated 3K carbon fibre that has its material plies oriented perfectly to deliver vast amounts of lateral stiffness while remaining lightweight. The 64mm deep and 26mm wide rim profile has been tuned in the wind-tunnel to lower drag markedly. At the same time, the 19mm internal width coerces tubeless-ready or standard clincher tyres into performing with lower rolling resistance and increased traction. Mavic has utilised their iTgMAX brake surface technology into the rims to help manage temperature build-up from hard or prolonged braking when using rim brake calipers.

Burly aluminium hubs grant all of the stiffness required when confronted with high power outputs and provide a solid base for the spokes to anchor into. The spokes are strong and durable and feature elliptical cross-sections to further improve aerodynamics.

Includes

  • Pre-installed tubeless rim tape
  • Multifunction adjustment wrench (delivered with rear wheel)
  • UST valves and accessories
  • Front and rear wheel axle fixing nuts
  • User guide

Highlights

  • A tremendously versatile wheelset that performs exceptionally within any road riding scenario
  • Full 3K carbon rims are tremendously stiff and lightweight
  • 64mm deep NACA developed rim profile lowers drag markedly
  • 19mm internal rim width lowers tyre rolling resistance and improves comfort
  • 26mm external width helps to smooth the tyre to rim junction
  • Tubeless-ready and standard clincher tyre compatible
  • iTgMAX brake surface reduces heat build-up
  • Aluminium hubs with a fixed rear cog format are light but stiff
  • Hub automatic bearing preload adjustment gives added bearing durability
  • Patented elliptical aero spokes are strong and dependable and reduce drag



Features

  • Tyre compatibility: UST tubeless-ready clincher or standard clincher
  • Wheel size: 700c
  • Rim: 100% 3K carbon fibre
  • Rim profile: Wide NACA
  • Rim finish: Naked 3K carbon, satin surface
  • Rim depth: 64mm
  • Internal rim width: 19mm
  • External rim width: 26mm
  • Rim internal format: Hooked
  • Spokes: Mavic steel straight pull, elliptical aero, double butted
  • Spoke count:  Front - 20 / Rear - 20
  • Spoke lacing pattern: Front - radial / Rear - 2-cross
  • Hubs: Front - Mavic aluminium track / Rear - Mavic aluminium track with fixed cog attachment
  • Freehub compatibility: Fixed cog only, flip-flop hub (one cog possible on each hub side). Cog thread: 1,37x24TPI. Lock ring thread: left thread M33x1
  • Brake compatibility: Standard rim brake caliper
  • Front axle: For fixing nuts only, M9x1 thread
  • Rear axle: For fixing nuts only, M9x1 thread
  • Brake surface: Carbon, iTgMAX
  • Recommended tyre size: 25mm to 32mm
  • Maximum tyre pressure: See indication on wheel and tyre. If they differ, use the lowest of the two
  • Maximum recommended rider weight: 120kg/265lbs (including rider, bike and any other luggage)
  • Manufacturer claimed weight: Front - 865 grams / Rear - 950 grams / Wheelset - 1815 grams
